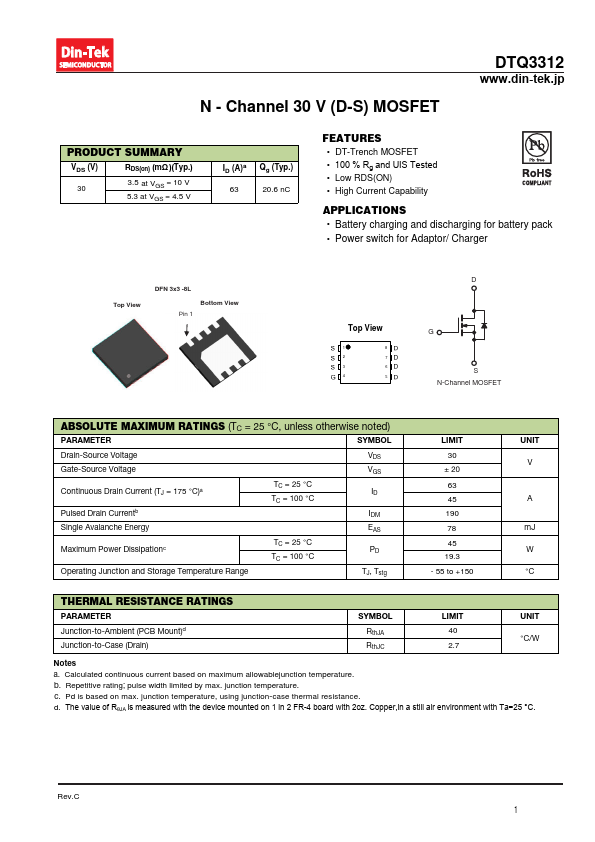

DTQ3312
DTQ3312 is 30V N-Channel MOSFET manufactured by Din-Tek Semiconductor.
FEATURES
- DT-Trench MOSFET
- 15J DQG8,67HVWHG
- Low RDS(ON)
- High Current Capability
APPLICATIONS Battery charging and discharging for battery pack Power switch for Adaptor/ Charger
Top View
DFN 3x3 -8L
Bottom View Pin 1
Top View
S N-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted)
PARAMETER
SYMBOL
Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 175 °C)a Pulsed Drain Currentb Single Avalanche Energy Maximum Power Dissipationc
Operating Junction and Storage Temperature Range
TC = 25 °C TC = 100 °C
TC = 25 °C TC = 100 °C
VDS VGS ID IDM EAS PD TJ, Tstg
LIMIT 30 ± 20 63 45 190 78 45 19.3
- 55 to +150
UNIT V
A m J W °C
THERMAL RESISTANCE RATINGS
PARAMETER Junction-to-Ambient (PCB Mount)d Junction-to-Case (Drain)
SYMBOL Rth JA Rth JC
LIMIT 40 2.7
UNIT °C/W
Notes a. Calculated continuous current based on maximum allowablejunction temperature. b. Repetitive rating; pulse width limited by max. junction temperature. c. Pd is based on max. junction temperature, using junction-case thermal resistance. d. The value of RθJA is measured with the device mounted on 1 in 2 FR-4 board with 2oz. Copper,in a still air environment with Ta=25 °C.
Rev.C
ZZZGLQWHNMS

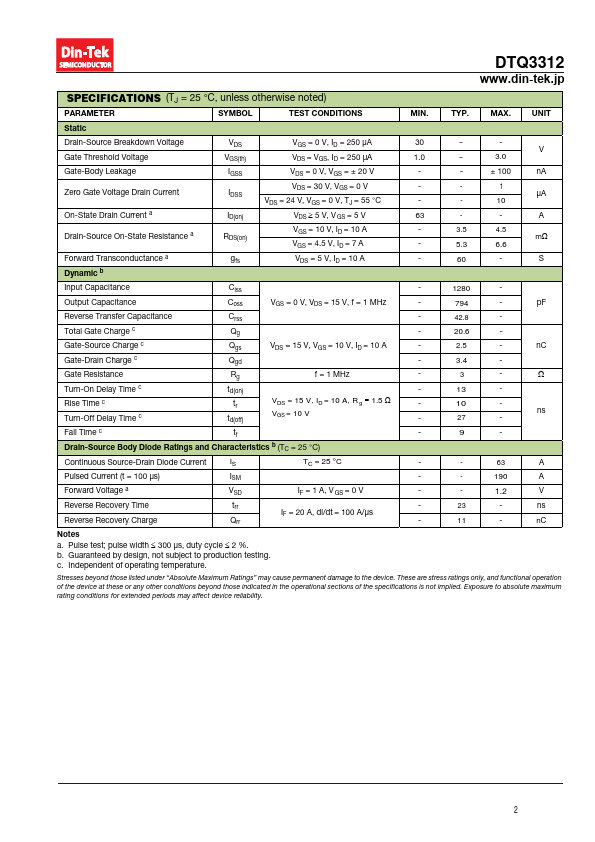

SPECIFICATIONS (TJ = 25 °C, unless otherwise noted)
PARAMETER
SYMBOL
TEST CONDITIONS
MIN.
TYP.
MAX....
