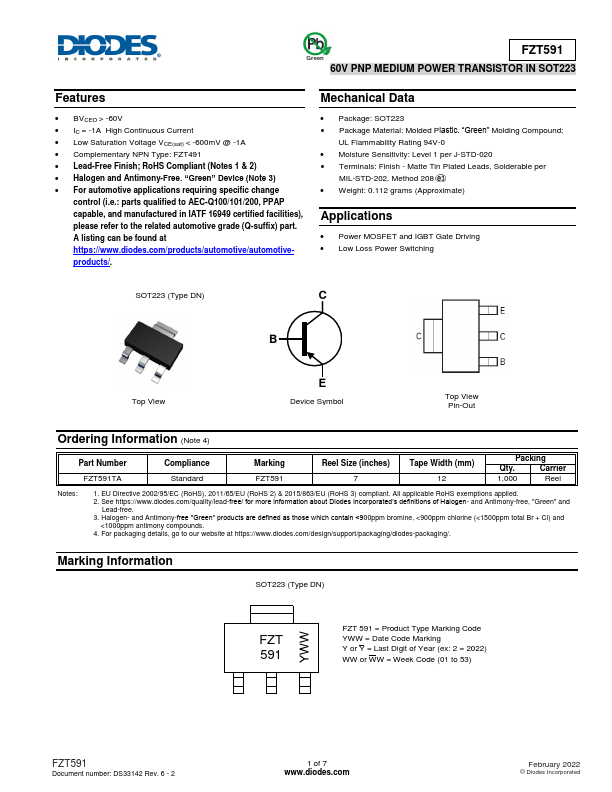

Features - BVCEO > -60V - IC = -1A High Continuous Current - Low Saturation Voltage VCE(sat) < -600m V @ -1A - plementary NPN Type: FZT491 - Lead-Free Finish; Ro HS pliant (Notes 1 & 2) - Halogen and Antimony-Free. “Green” Device (Note 3) - For automotive applications requiring specific change control (i.e.: parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please refer to the related automotive grade (Q-suffix) part. A listing can be found at https://.diodes./products/automotive/automotiveproducts/. Mechanical Data - Package: SOT223 - Package Material: Molded Plastic. “Green” Molding pound; UL Flammability Rating 94V-0 - Moisture Sensitivity: Level 1 per J-STD-020 - Terminals: Finish - Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208 - Weight: 0.112 grams (Approximate) Applications - Power MOSFET and IGBT Gate Driving - Low Loss Power Switching SOT223 (Type DN) Top View Device Symbol Top View Pin-Out Ordering Information (Note 4) Part Number FZT591TA pliance Standard Marking FZT591 Reel Size (inches) 7 Tape Width (mm) 12 Packing Qty. Carrier 1,000 Reel Notes: 1. EU Directive 2002/95/EC (Ro HS), 2011/65/EU (Ro HS 2) & 2015/863/EU (Ro HS 3) pliant. All applicable Ro HS exemptions applied. 2. See https://.diodes./quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl)...
