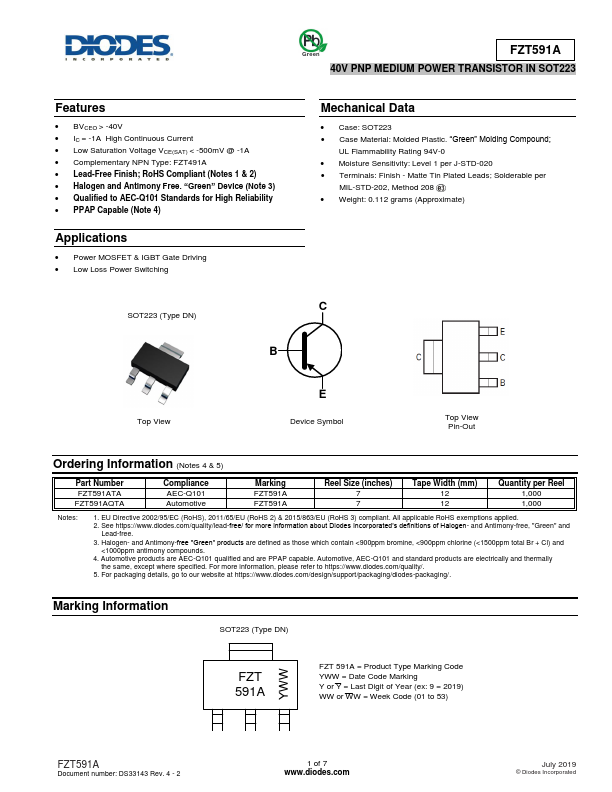

FZT591A
FZT591A is 40V PNP MEDIUM POWER TRANSISTOR manufactured by Diodes Incorporated.
Features
- BVCEO > -40V
- IC = -1A High Continuous Current
- Low Saturation Voltage VCE(SAT) < -500m V @ -1A
- plementary NPN Type: FZT491A
- Lead-Free Finish; Ro HS pliant (Notes 1 & 2)
- Halogen and Antimony Free. “Green” Device (Note 3)
- Qualified to AEC-Q101 Standards for High Reliability
- PPAP Capable (Note 4)
Applications
- Power MOSFET & IGBT Gate Driving
- Low Loss Power Switching
Mechanical Data
- Case: SOT223
- Case Material: Molded Plastic. “Green” Molding pound;
UL Flammability Rating 94V-0
- Moisture Sensitivity: Level 1 per J-STD-020
- Terminals: Finish
- Matte Tin Plated Leads; Solderable per
MIL-STD-202, Method 208
- Weight: 0.112 grams (Approximate)
SOT223 (Type DN)
Top View
Device Symbol
Top View Pin-Out
Ordering Information (Notes 4 & 5)
Part Number FZT591ATA FZT591AQTA pliance AEC-Q101 Automotive
Marking FZT591A FZT591A
Reel Size (inches) 7 7
Tape Width (mm) 12 12
Quantity per Reel 1,000 1,000
Notes:
1. EU Directive 2002/95/EC (Ro HS), 2011/65/EU (Ro HS 2) & 2015/863/EU (Ro HS 3) pliant. All applicable Ro HS exemptions applied. 2. See https://.diodes./quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony pounds. 4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the same, except where specified. For more information, please refer to https://.diodes./quality/. 5. For packaging details, go to our website at https://.diodes./design/support/packaging/diodes-packaging/.
Marking Information
SOT223 (Type DN)
FZT...
