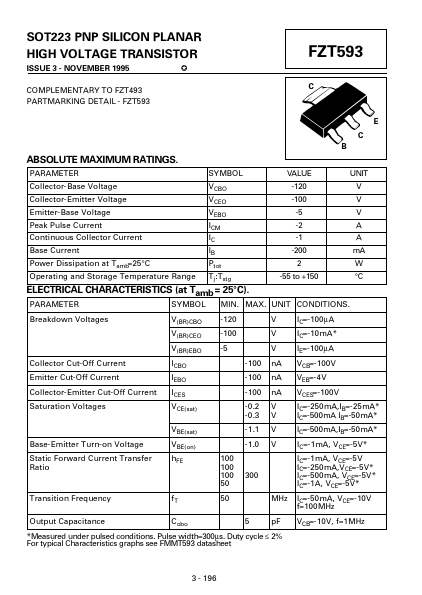

FZT593
FZT593 is SOT223 PNP SILICON PLANAR HIGH VOLTAGE TRANSISTOR manufactured by Zetex Semiconductors.
SOT223 PNP SILICON PLANAR
HIGH VOLTAGE TRANSISTOR
ISSUE 3
- NOVEMBER 1995
PLEMENTARY TO FZT493 PARTMARKING DETAIL
- FZT593
ABSOLUTE MAXIMUM RATINGS.
PARAMETER
SYMBOL
VALUE
UNIT
Collector-Base Voltage
VCBO
-120
Collector-Emitter Voltage
VCEO
-100
Emitter-Base Voltage
VEBO
-5
Peak Pulse Current
-2
Continuous Collector Current
-1
Base Current
-200 m A
Power Dissipation at Tamb=25°C
Ptot
Operating and Storage Temperature Range...
