Datasheet Details
| Part number | EC24C16A |
|---|---|
| Manufacturer | E-CMOS |
| File Size | 464.65 KB |
| Description | 16K-bit 2-WIRE SERIAL CMOS EEPROM |
| Datasheet |

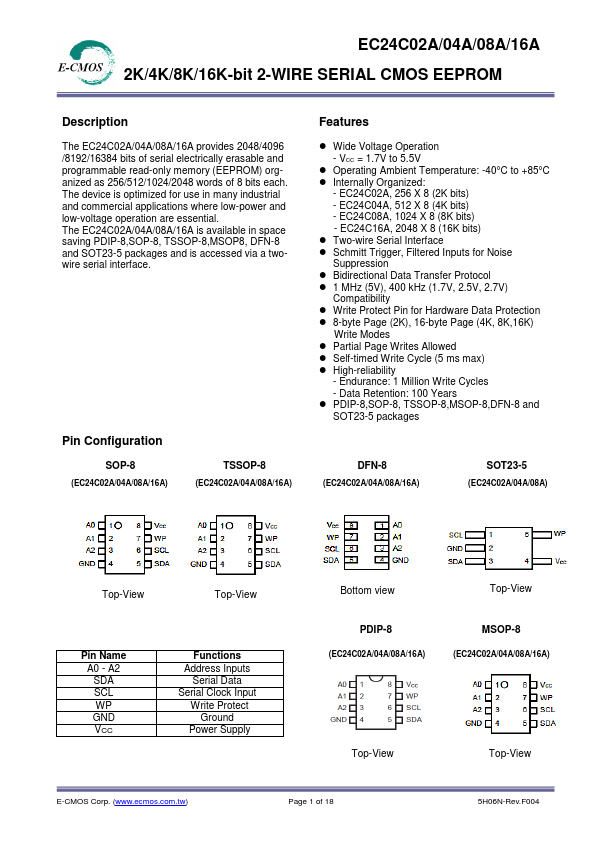

 EC24C16A Datasheet
|
|
|
General Description
The EC24C02A/04A/08A/16A provides 2048/4096 /8192/16384 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 256/512/1024/2048 words of 8 bits each.
Key Features
- Wide Voltage Operation - VCC = 1.7V to 5.5V.
- Operating Ambient Temperature: -40°C to +85°C.
- Internally Organized: - EC24C02A, 256 X 8 (2K bits) - EC24C04A, 512 X 8 (4K bits) - EC24C08A, 1024 X 8 (8K bits) - EC24C16A, 2048 X 8 (16K bits).
- Two-wire Serial Interface.
- Schmitt Trigger, Filtered Inputs for Noise Suppression.
- Bidirectional Data Transfer Protocol.
- 1 MHz (5V), 400 kHz (1.7V, 2.5V, 2.7V) Compatibility.
- Write Protect Pin for Hardware Data Protection.
