This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | EMP8160A |
|---|---|
| Datasheet | EMP8160A EMP8160 Datasheet (PDF) |
| File Size | 1.46 MB |
| Manufacturer | ESMT (Elite Semiconductor Microelectronics Technology) |
| Description | 2A Ultra Low Dropout Voltage Regulator with Internal Soft-Start |
|
|

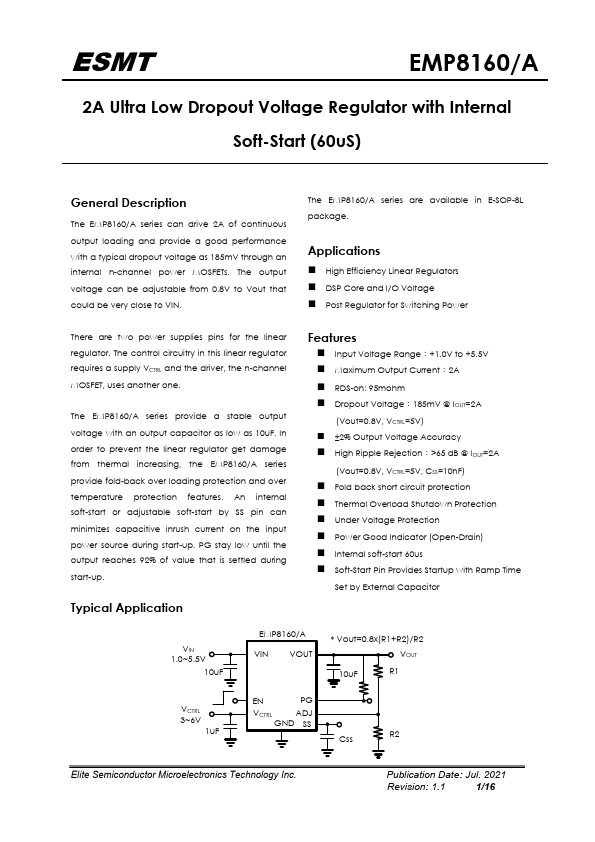

The EMP8160/A series can drive 2A of continuous output loading and provide a good performance with a typical dropout voltage as 185mV through an internal n-channel power MOSFETs. The output voltage can be adjustable from 0.8V to Vout that could be very close to VIN. The EMP8160/A series are available in E-SOP-8L package.
See all ESMT (Elite Semiconductor Microelectronics Technology) datasheets
| Part Number | Description |
|---|---|
| EMP8160 | 2A Ultra Low Dropout Voltage Regulator with Internal Soft-Start |
| EMP8165 | 2A Ultra Low Dropout Voltage Regulator |
| EMP8165A | 2A Ultra Low Dropout Voltage Regulator |
| EMP8166 | 1A Ultra Low Dropout Voltage Regulator with Internal Soft-Start |
| EMP8166A | 1A Ultra Low Dropout Voltage Regulator with Internal Soft-Start |
| EMP8150 | CMOS Linear Regulator |
| EMP8170 | 3A Ultra Low Dropout Voltage Regulator with Internal Soft-Start |
| EMP8170A | 3A Ultra Low Dropout Voltage Regulator with Internal Soft-Start |
| EMP8045 | Low-Dropout Linear Regulator |
