This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | EMP8166A |
|---|---|
| Datasheet | EMP8166A EMP8166 Datasheet (PDF) |
| File Size | 926.17 KB |
| Manufacturer | ESMT (Elite Semiconductor Microelectronics Technology) |
| Description | 1A Ultra Low Dropout Voltage Regulator with Internal Soft-Start |
|
|

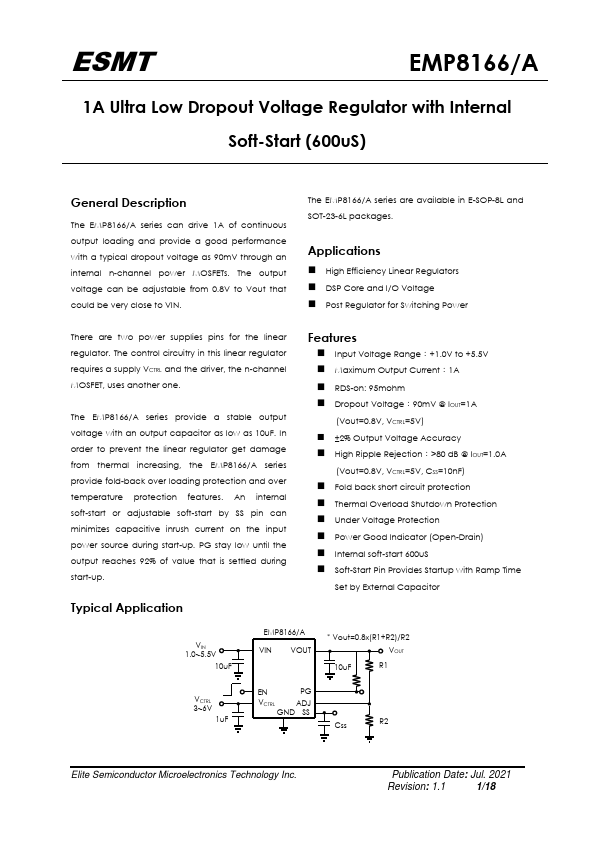

The EMP8166/A series can drive 1A of continuous output loading and provide a good performance with a typical dropout voltage as 90mV through an internal n-channel power MOSFETs. The output voltage can be adjustable from 0.8V to Vout that could be very close to VIN. The EMP8166/A series are available in E-SOP-8L and SOT-23-6L packages.
See all ESMT (Elite Semiconductor Microelectronics Technology) datasheets
| Part Number | Description |
|---|---|
| EMP8166 | 1A Ultra Low Dropout Voltage Regulator with Internal Soft-Start |
| EMP8160 | 2A Ultra Low Dropout Voltage Regulator with Internal Soft-Start |
| EMP8160A | 2A Ultra Low Dropout Voltage Regulator with Internal Soft-Start |
| EMP8165 | 2A Ultra Low Dropout Voltage Regulator |
| EMP8165A | 2A Ultra Low Dropout Voltage Regulator |
| EMP8150 | CMOS Linear Regulator |
| EMP8170 | 3A Ultra Low Dropout Voltage Regulator with Internal Soft-Start |
| EMP8170A | 3A Ultra Low Dropout Voltage Regulator with Internal Soft-Start |
| EMP8045 | Low-Dropout Linear Regulator |
