EMP8166
EMP8166 is 1A Ultra Low Dropout Voltage Regulator with Internal Soft-Start manufactured by Elite Semiconductor Microelectronics Technology.
ESMT
EMP8166/A

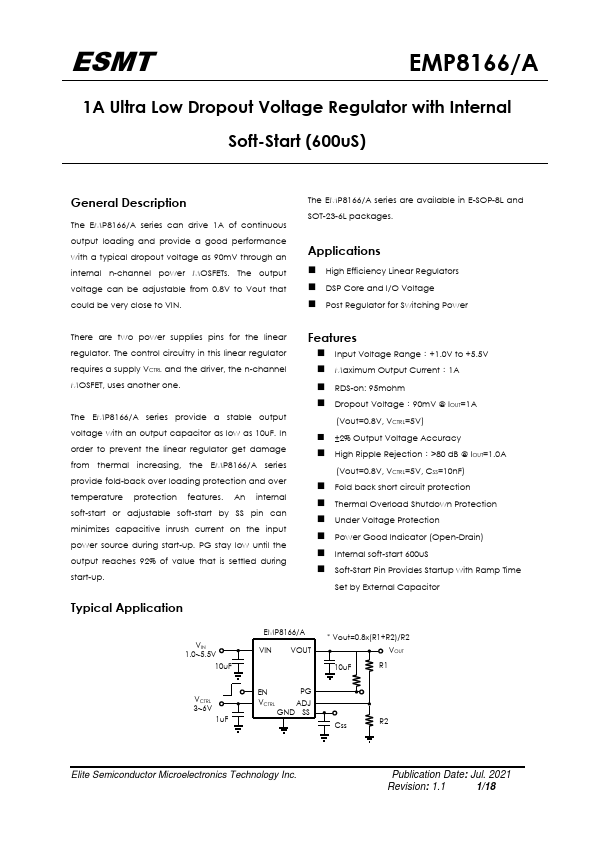

1A Ultra Low Dropout Voltage Regulator with Internal Soft-Start (600uS)
General Description
The EMP8166/A series can drive 1A of continuous output loading and provide a good performance with a typical dropout voltage as 90mV through an internal n-channel power MOSFETs. The output voltage can be adjustable from 0.8V to Vout that could be very close to VIN.

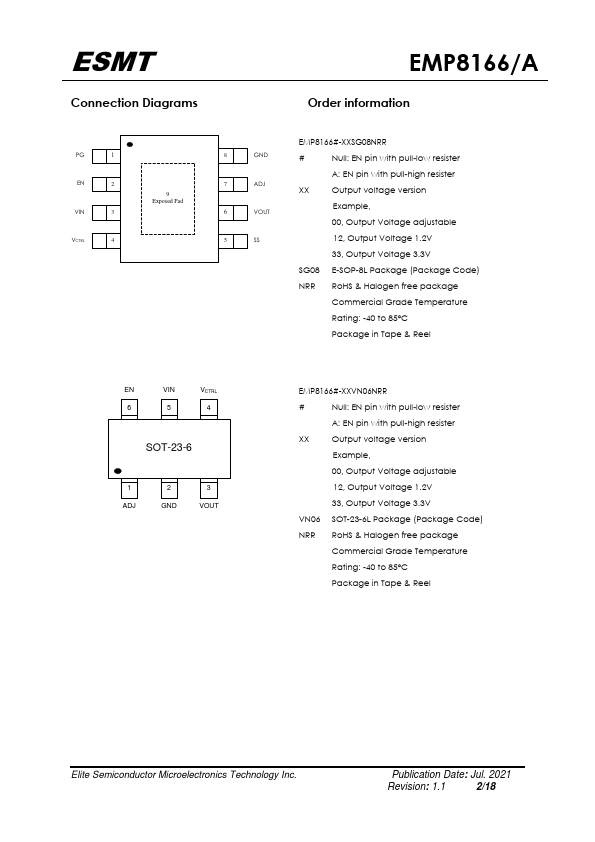

The EMP8166/A series are available in E-SOP-8L and SOT-23-6L packages.
Applications
High Efficiency Linear Regulators DSP Core and I/O Voltage Post Regulator for Switching Power
There are two power supplies pins for the linear regulator. The control circuitry in this linear regulator requires a supply VCTRL and...
