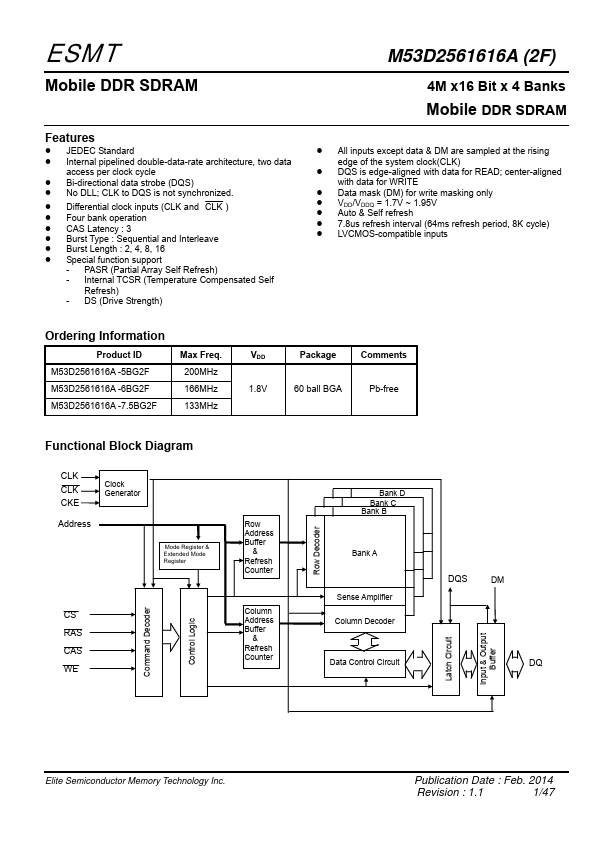

M53D2561616A-5BG2F Datasheet 4m X16 Bit X 4 Banks Mobile Ddr Sdram

Manufacturer: ESMT (Elite Semiconductor Microelectronics Technology)

Overview: ESMT Mobile DDR SDRAM.

This datasheet includes multiple variants, all published together in a single manufacturer document.

General Description

Ball Na

Key Features

  • JEDEC Standard.
  • Internal pipelined double-data-rate architecture, two data access per clock cycle.
  • Bi-directional data strobe (DQS).
  • No DLL; CLK to DQS is not synchronized.
  • Differential clock inputs (CLK and CLK ).
  • Four bank operation.
  • CAS Latency : 3.
  • Burst Type : Sequential and Interleave.
  • Burst Length : 2, 4, 8, 16.
  • Special function support - PASR (Partial Array Self Refresh) - Internal TCSR (Temperature Compensated Self Refresh) - DS (Drive.
