2SC3357 Datasheet | EVVO

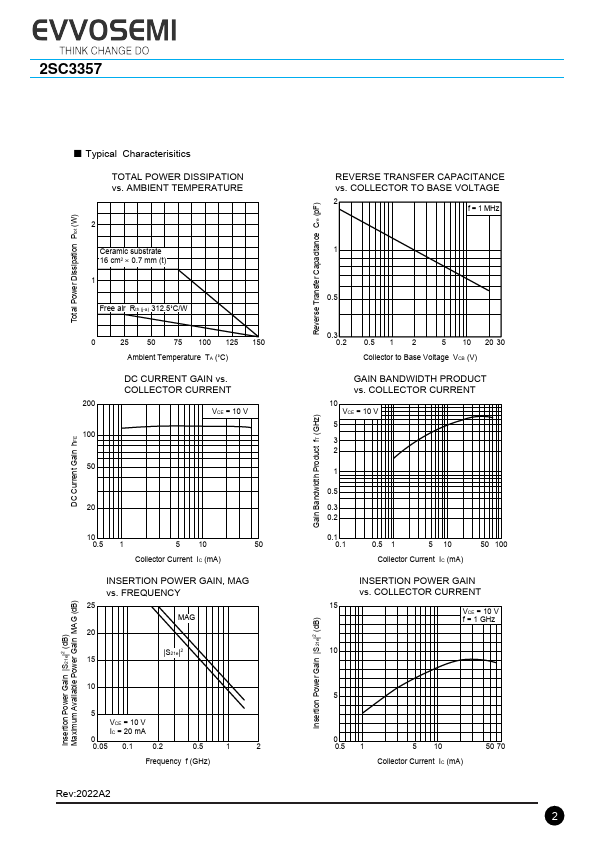

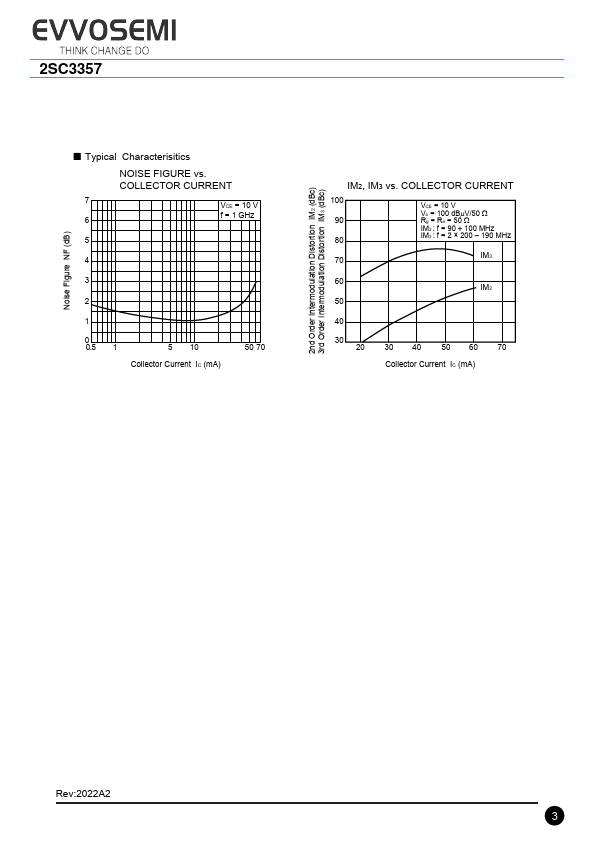

Features - Low noise and high gain - High power gain - Large Ptot 1.Base 2.Collector 3.Emitter - Simplified outline(SOT-89) - Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Power Dissipation Junction to Ambient Resistance Junction Temperature Storage Temperature Range Symbol VCBO VCEO VEBO IC PC Rth (j-a) TJ Tstg Rating 20 12 3 100 1.2 62.5 150 -55 to 150 Unit V m A W ℃/W ℃ - Electrical Characteristics Ta = 25℃ Parameter Collector- base breakdown voltage Collector- emitter breakdown voltage Emitter - base breakdown voltage Collector-base cut-off current Emitter cut-off current Collector-emitter saturation voltage Base - emitter saturation voltage DC current gain (Note.1) Insertion Power Gain Noise Figure Reverse Transfer Capacitance Transition frequency Symbol Test Conditions VCBO Ic= 100 μA， IE= 0 VCEO Ic= 1 m A， IB= 0 VEBO IE= 100μA， IC= 0 ICBO VCB= 20V , IE= 0 IEBO VEB= 3V , IC=0 VCE(sat) IC=50 m A, IB=5m A VBE(sat) IC=50 m A, IB=5m A h FE |S21e| 2 VCE= 10V, IC= 20m A VCE = 10V, IC = 20m A, f= 1GHz VCE = 10V, IC = 7m A, f= 1GHz NF VCE = 10V, IC = 40m A, f=...
