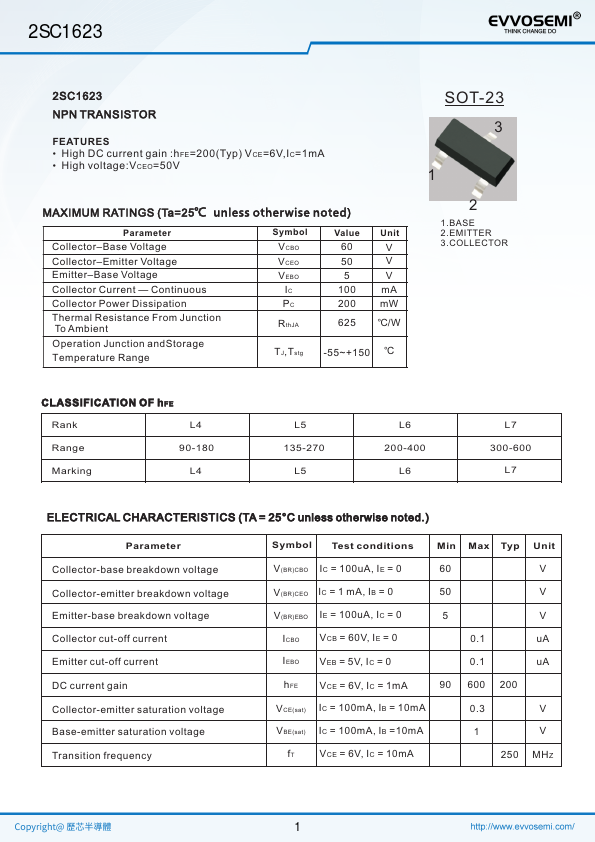

2SC1623
FEATURES
- High DC current gain :h FE=200(Typ) VCE=6V,IC=1m A
- High voltage:VCEO=50V
MAXIMUM RATINGS (Ta=25℃ unless other wise noted)
Parameter Collector- Base Voltage Collector- Emitter Voltage Emitter- Base Voltage Collector Current
- Continuous Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range
Symbol VCBO VCEO VEBO IC PC
Rth JA
Value 60 50 5 100 200
Unit V V V m A m W
℃/W
TJ,Tstg -55~+150 ℃

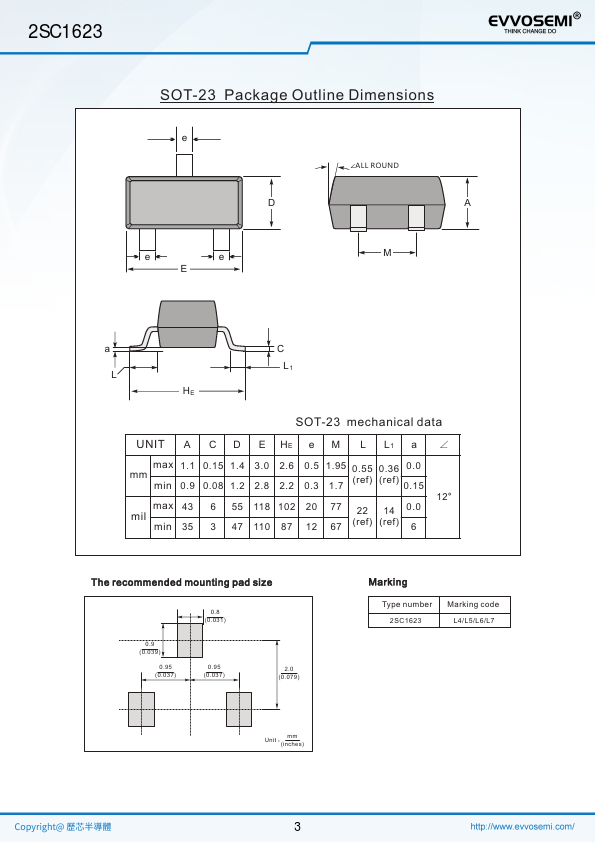

SOT-23 3
1.BASE 2.EMITTER 3.COLLECTOR
CLASSIFICATION OF h FE
Rank
L4
Range
90-180
Marking
L4
L5 135-270
L5
L6 200-400
L6
L7 300-600
L7
ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted.)
Parameter Collector-base breakdown voltage Collector-emitter breakdown voltage Emitter-base breakdown voltage Collector cut-off current Emitter cut-off current DC current gain Collector-emitter saturation voltage Base-emitter saturation voltage Transition frequency
Symbol Test conditions Min Max Typ...
