• Part: PESD5V0V1BA
  • Manufacturer: EVVO
  • Size: 385.14 KB
Download PESD5V0V1BA Datasheet PDF

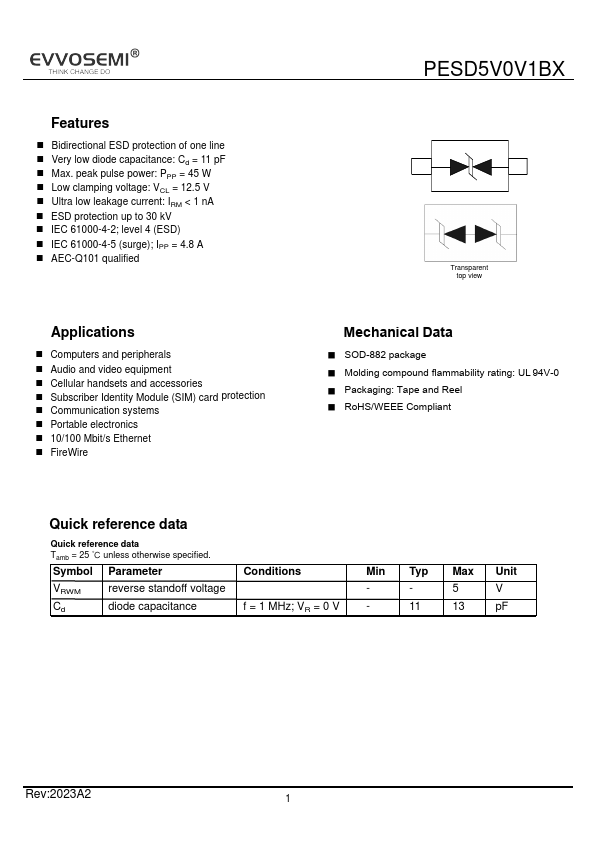

PESD5V0V1BA datasheet preview
PESD5V0V1BA page 2
Page 2

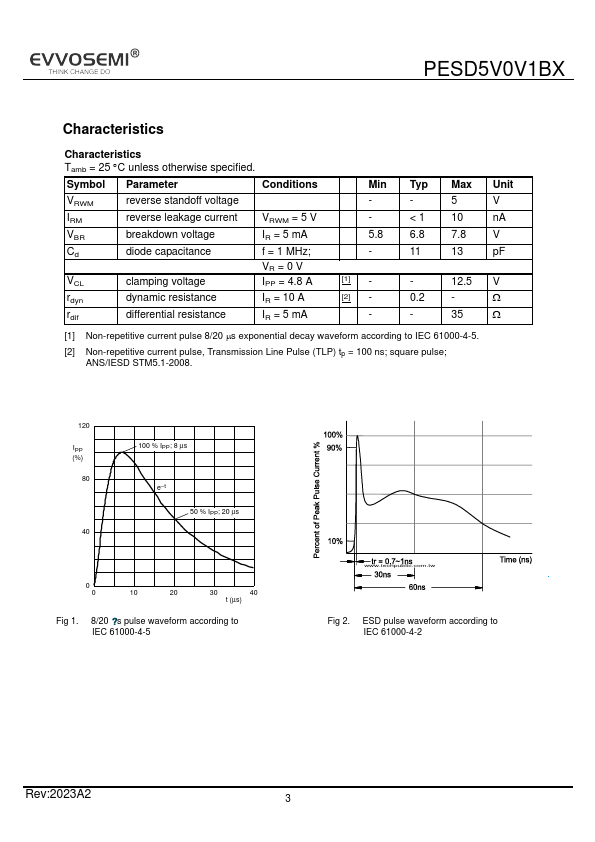

PESD5V0V1BA page 3
Page 3

PESD5V0V1BA Key Features

  • Bidirectional ESD protection of one line
  • Very low diode capacitance: Cd = 11 pF
  • Max. peak pulse power: PPP = 45 W
  • Low clamping voltage: VCL = 12.5 V
  • Ultra low leakage current: IRM < 1 nA
  • ESD protection up to 30 kV
  • IEC 61000-4-2; level 4 (ESD)
  • IEC 61000-4-5 (surge); IPP = 4.8 A
  • AEC-Q101 qualified

Other PESD5V0V1BA Datasheets

Manufacturer Part Number Description
NXP Semiconductors Logo NXP Semiconductors PESD5V0V1BA Very low capacitance bidirectional ESD protection diodes
nexperia Logo Nexperia PESD5V0V1BA Very low capacitance bidirectional ESD protection diode
NXP Semiconductors Logo NXP Semiconductors PESD5V0V1BB Very low capacitance bidirectional ESD protection diodes
nexperia Logo Nexperia PESD5V0V1BB Very low capacitance bidirectional ESD protection diode
NXP Logo NXP Semiconductors PESD5V0V1BCSF Ultra low profile bidirectional very low capacitance ESD protection diode

View all PESD5V0V1BA datasheets →

PESD5V0V1BA Description

plastic surface-mounted package; 2 leads plastic surface-mounted package; 2 leads leadless ultra small plastic package;.
