PESD5V0V1BB

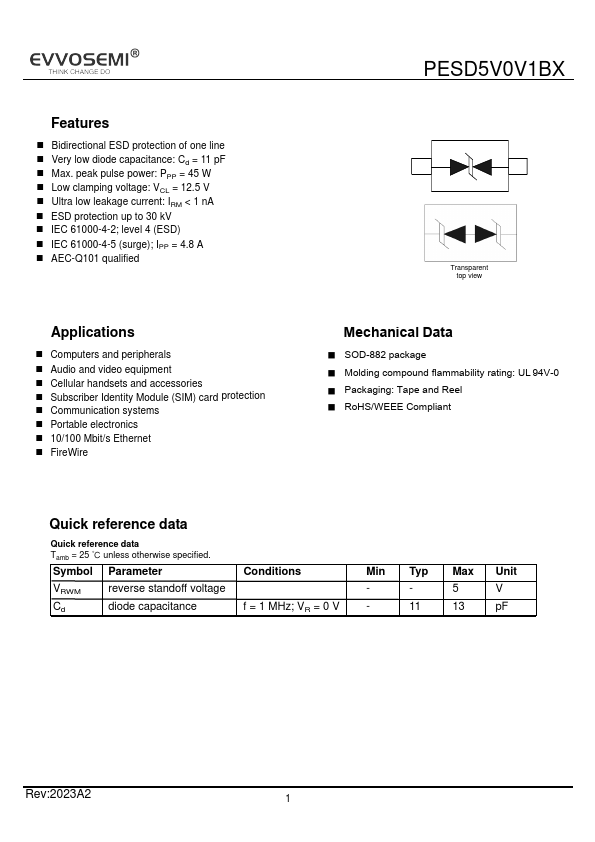

Features
- Bidirectional ESD protection of one line
- Very low diode capacitance: Cd = 11 p F
- Max. peak pulse power: PPP = 45 W
- Low clamping voltage: VCL = 12.5 V
- Ultra low leakage current: IRM < 1 n A
- ESD protection up to 30 k V
- IEC 61000-4-2; level 4 (ESD)
- IEC 61000-4-5 (surge); IPP = 4.8 A
- AEC-Q101 qualified
Applications
- puters and peripherals
- Audio and video equipment
- Cellular handsets and accessories
- Subscriber Identity Module (SIM) card protection
- munication systems
- Portable electronics
- 10/100 Mbit/s Ethernet
- Fire Wire
PESD5V0V1BX
Transparent top view
Mechanical Data
- SOD-882 package
- Molding pound flammability rating: UL 94V-0
- Packaging: Tape and Reel
- Ro HS/WEEE pliant
Quick reference data
Quick reference data Tamb = 25 ℃ unless otherwise specified.
Symbol Parameter
VRWM Cd reverse standoff voltage diode capacitance
Conditions f = 1 MHz; VR = 0 V
Min Typ Max Unit
- -
- 11
13 p F
Rev:2023A2
PESD5V0V1BX
