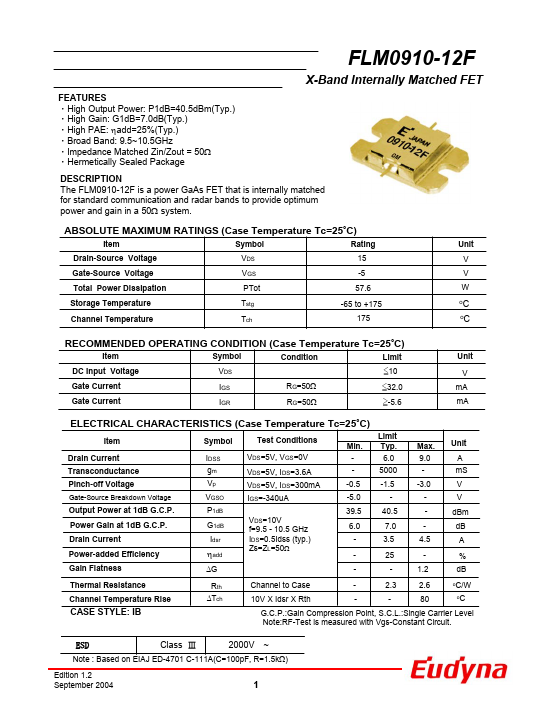

FLM0910-12F
FLM0910-12F is Internally Matched FET manufactured by Eudyna Devices.
FEATURES
- High Output Power: P1d B=40.5d Bm(Typ.)
- High Gain: G1d B=7.0d B(Typ.)
- High PAE: ηadd=25%(Typ.)
- Broad Band: 9.5~10.5GHz
- Impedance Matched Zin/Zout = 50Ω
- Hermetically Sealed Package
DESCRIPTION
The FLM0910-12F is a power Ga As FET that is internally matched for standard munication and radar bands to provide optimum power and gain in a 50Ω system.
ABSOLUTE MAXIMUM RATINGS (Case Temperature Tc=25°C)
Item
Symbol
Rating
Unit
Drain-Source Voltage
Gate-Source Voltage
-5
Total Power Dissipation
PTot
Storage Temperature
Tstg
-65 to +175 o C
Channel Temperature
Tch
175 o C
REMENDED OPERATING CONDITION (Case Temperature Tc=25°C)
Item
Symbol
Condition
Limit
DC Input Voltage
≤10
Gate Current
RG=50Ω...
