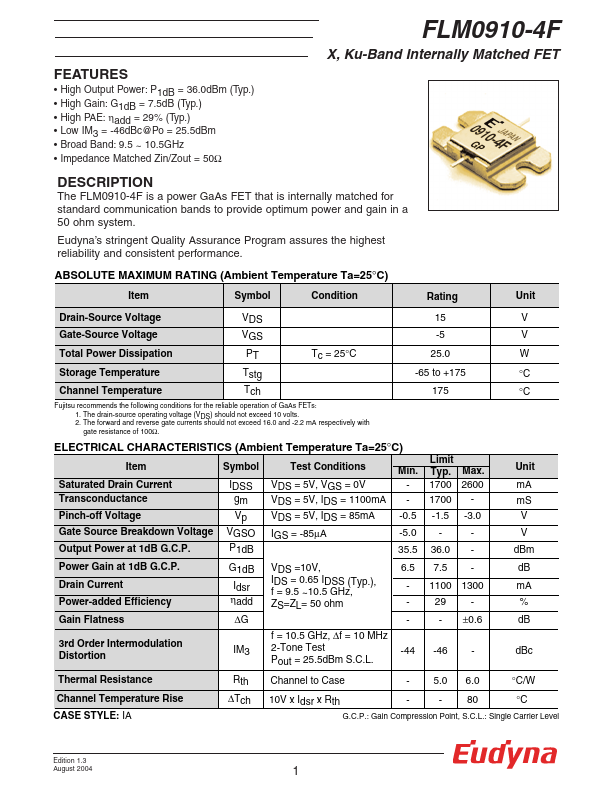

FLM0910-4F Description
The FLM0910-4F is a power GaAs FET that is internally matched for standard munication bands to provide optimum power and gain in a 50 ohm system. Eudyna’s stringent Quality Assurance Program assures the highest reliability and consistent performance. RATING (Ambient Temperature Ta=25°C) Item Symbol Condition Rating Unit Drain-Source Voltage VDS 15 V Gate-Source Voltage VGS -5 V Total Power Dissipation PT Tc = 25°C...
FLM0910-4F Key Features
- High Output Power: P1dB = 36.0dBm (Typ.)
- High Gain: G1dB = 7.5dB (Typ.)
- High PAE: ηadd = 29% (Typ.)
- Low IM3 = -46dBc@Po = 25.5dBm
- Broad Band: 9.5 ~ 10.5GHz
- Impedance Matched Zin/Zout = 50Ω
