KSP93 - PNP Epitaxial Silicon Transistor

Fairchild (now onsemi)

Download the KSP93 datasheet PDF. This datasheet also covers the KSP92 variant, as both devices belong to the same pnp epitaxial silicon transistor family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

KSP93 pnp epitaxial silicon transistor by Fairchild (now onsemi) - Datasheet Preview — Note: The manufacturer provides a single datasheet file (KSP92-FairchildSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	KSP93
Manufacturer	Fairchild (now onsemi)
File Size	90.00 KB
Description	PNP Epitaxial Silicon Transistor
Datasheet	KSP93 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
KSP92	Dip Switch	OTAX
KSP92	P-channel enhancement mode vertical D-MOS transistor	Kexin
KSP92	PNP Epitaxial Silicon Transistor	onsemi
KSP9435A	-30V P-Channel MOSFET	Korsun Semiconductor
KSP-1MLR2	Silicon Photodiode Mounted	KODENSHI KOREA CORP

Other Datasheets by Fairchild (now onsemi)

Part Number	Description
KSP92	PNP Epitaxial Silicon Transistor
KSP94	High Voltage Transistor
KSP05	Amplifier Transistor
KSP06	Amplifier Transistor
KSP10	VHF/UHF transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

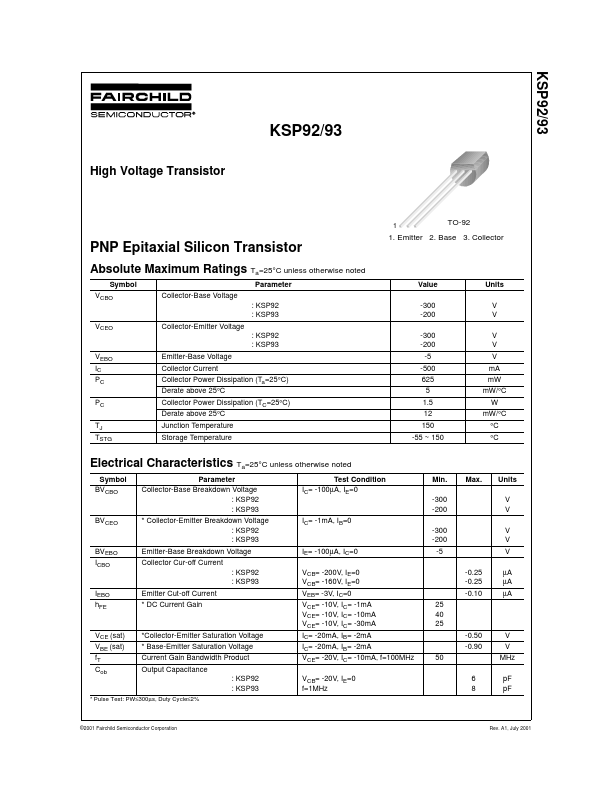

KSP92/93 High Voltage Transistor KSP92/93 PNP Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol Parameter VCBO Collector-Base Voltage : KSP92 : KSP93 VCEO Collector-Emitter Voltage : KSP92 : KSP93 VEBO IC PC Emitter-Base Voltage Collector Current Collector Power Dissipation (Ta=25°C) Derate above 25°C PC Collector Power Dissipation (TC=25°C) Derate above 25°C TJ TSTG Junction Temperature Storage Temperature 1 TO-92 1. Emitter 2. Base 3. Collector Value -300 -200 -300 -200 -5 -500 625 5 1.
