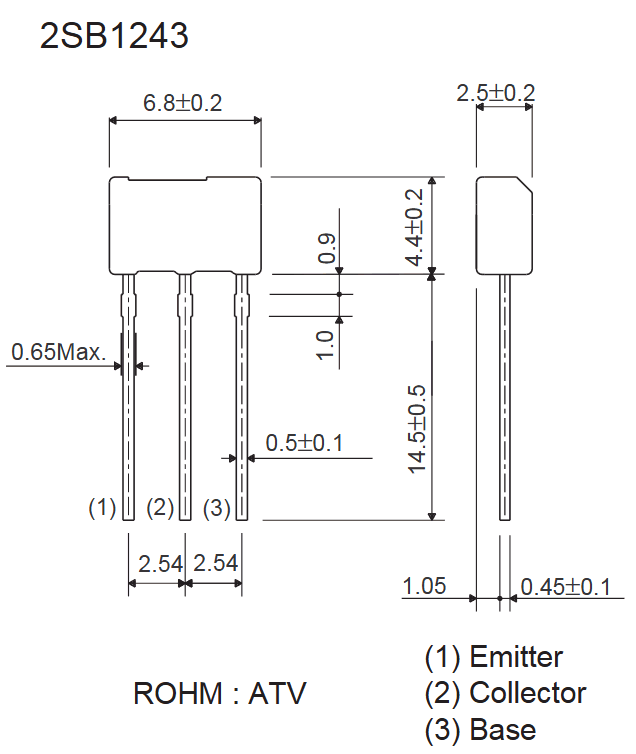

2SB1243 - Power Transistor

Key Features

  • z Low VCE(sat). VCE(sat)=-0.5V(Typ)(IC/IB=-2A/-0.2A) z Complements the 2SD1864.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB1243 Power Transistor Rohm
2SB1243 Silicon PNP transistor BLUE ROCKET ELECTRONICS
2SB1240 Medium power Transistor Rohm
2SB1240 Silicon PNP transistor BLUE ROCKET ELECTRONICS
2SB1241 Power Transistor Rohm

Other Datasheets by Galaxy Microelectronics

Part Number Description
2SB1240 Medium Power Transistor
2SB1202 PNP Epitaxial Planar Silicon Transistors
2SB1218A PNP Silicon Transistor
2SB1260 Power Transistor
2SB1261 PNP Epitaxial Planar Silicon Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
Power Transistor FEATURES z Low VCE(sat). VCE(sat)=-0.5V(Typ)(IC/IB=-2A/-0.2A) z Complements the 2SD1864. APPLICATIONS z Epitaxial planar type. z PNP silicon transistor. Pb Lead-free Production specification 2SB1243 TO-251 MAXIMUM RATING operating temperature range applies unless otherwise specified Symbol Parameter Value Units VCBO Collector-Base Volage -60 V VCEO Collector-Emitter Voltage -50 V VEBO Emitter-Base Voltage -5 V IC Collector Current -3 A ICP Collector Power Dissipation -4.5 A PC Collector Power Dissipation 1W Tj ,Tstg Junction and Storage temperature range -55 to +150 ℃ V039 Rev.A www.gmicroelec.
