2SD1782 - Medium Power Transistor

Galaxy Microelectronics

Key Features

z Low VCE(sat). VCE(sat) =0.2V(Typ. ) (IC / IB=0.5 A / 50mA) z High VCEO, VCEO=80V z Complements the 2SB1198K. Pb Lead-free.

2SD1782 medium power transistor by Galaxy Microelectronics - Datasheet Preview

Datasheet Details

Part number	2SD1782
Manufacturer	Galaxy Microelectronics
File Size	186.69 KB
Description	Medium Power Transistor
Datasheet	2SD1782 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SD1782	NPN SILICON TRANSISTOR	Unisonic Technologies
2SD1782	NPN Transistor	JCET
2SD1782K	Power Transistor	Rohm
2SD1782K	Power Transistor	Kexin
2SD1780	NPN SILICON TRANSISTOR	NEC

Other Datasheets by Galaxy Microelectronics

Part Number	Description
2SD1757	Silicon Epitaxial Planar Transistor
2SD1758	Medium Power Transistor
2SD1760	Power Transistor
2SD1762	Power Transistor
2SD1767	Medium power transistor

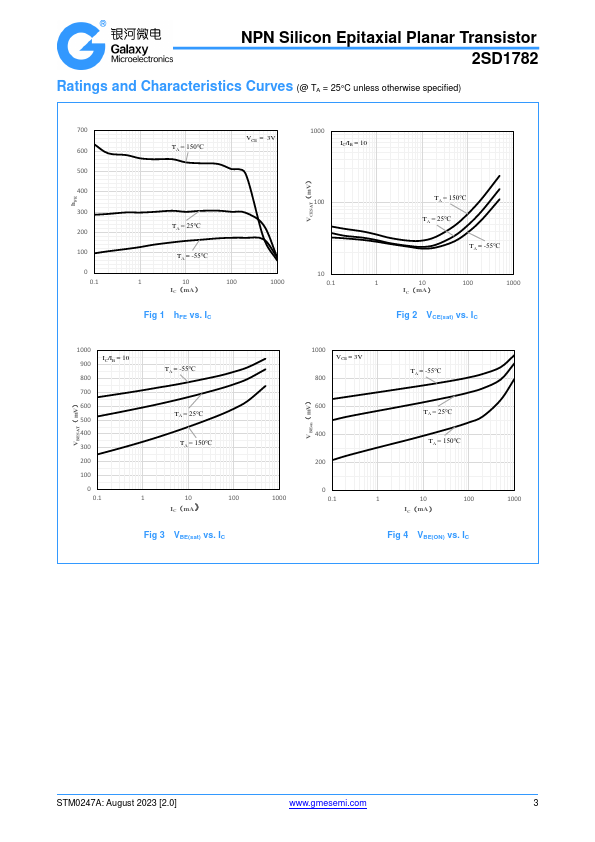

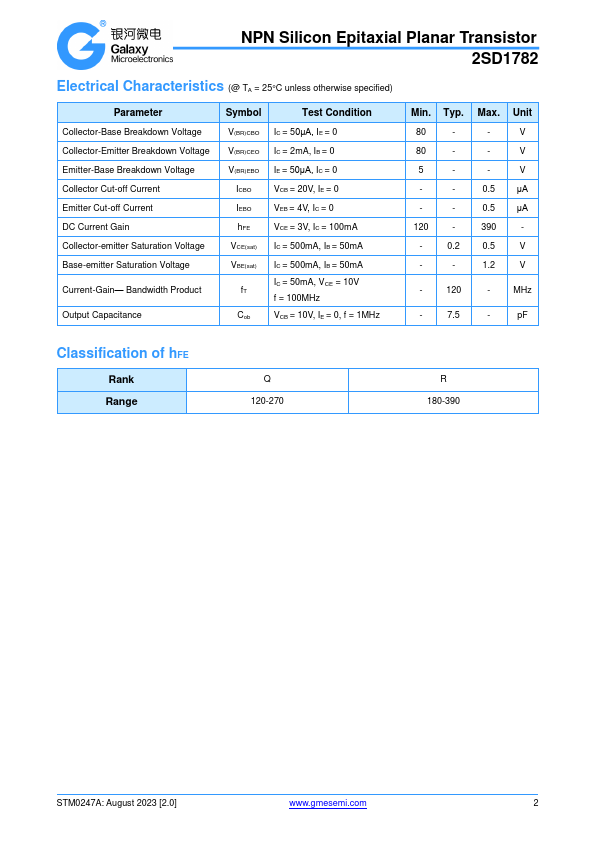

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

Medium Power Transistor FEATURES z Low VCE(sat). VCE(sat) =0.2V(Typ.) (IC / IB=0.5 A / 50mA) z High VCEO, VCEO=80V z Complements the 2SB1198K. Pb Lead-free APPLICATIONS z Epitaxial planar type NPN silicon transistor. Production specification 2SD1782 SOT-23 ORDERING INFORMATION Type No. Marking 2SD1782 AJ Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage 80 Units V VCEO Collector-Emitter Voltage 80 V VEBO Emitter-Base Voltage 5V IC Collector Current -Continuous 0.5 mA PC Collector Dissipation 0.2 mW Tj,Tstg Junction and Storage Temperature -55 to +150 ℃ C251 Rev.A www.gmicroelec.
