2SD1819A - Silicon Epitaxial Planar Transistor

Key Features

  • z Low collector to emitter saturation voltage. z High forward current transfer ratio hFE. z Complementary to 2SB1218A. z Small package. Pb Lead-free Production specification 2SD1819A.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SD1819A Silicon NPN epitaxial planer type Transistor Panasonic Semiconductor
2SD1819A Silicon NPN epitaxial planar type Transistor Kexin
2SD1819A NPN Silicon General Purpose Transistor SeCoS
2SD1819A Silicon NPN transistor BLUE ROCKET ELECTRONICS
2SD1819A NPN Transistor JCET

Other Datasheets by Galaxy Microelectronics

Part Number Description
2SD1815 NPN Epitaxial Planar Silicon Transistors
2SD1802 NPN Epitaxial Planar Silicon Transistors
2SD1803 NPN Epitaxial Planar Silicon Transistors
2SD1864 Power Transistor
2SD1898 Power Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

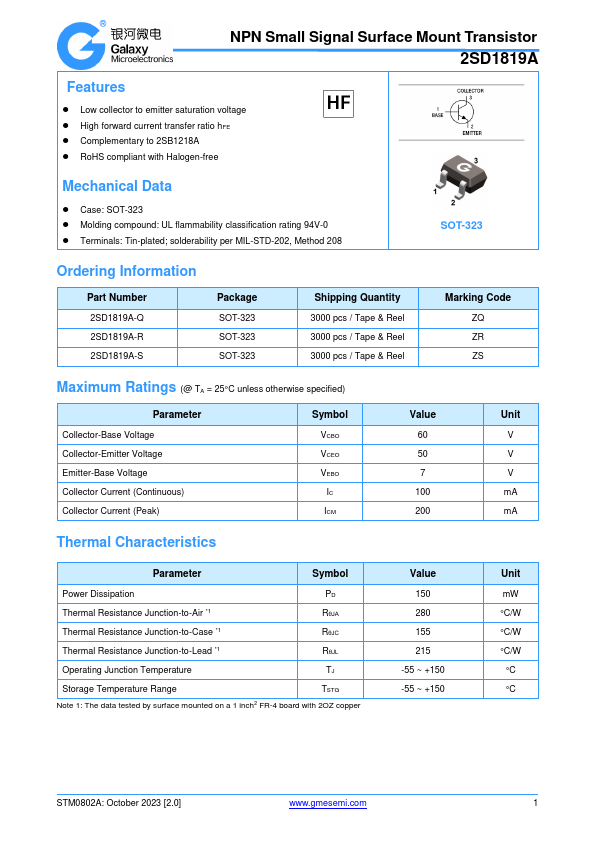

Silicon Epitaxial Planar Transistor FEATURES z Low collector to emitter saturation voltage. z High forward current transfer ratio hFE. z Complementary to 2SB1218A. z Small package. Pb Lead-free Production specification 2SD1819A APPLICATIONS z For general amplification. ORDERING INFORMATION Type No. Marking 2SD1819A ZQ/ZR/ZS SOT-323 Package Code SOT-323 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage 60 VCEO Collector-Emitter Voltage 50 VEBO Emitter-Base Voltage 7 IC Collector Current -Continuous 100 PC Collector Dissipation 150 Tj,Tstg Junction and Storage Temperature -55 to +150 Units V V V mA mW ℃ F043 Rev.A www.gmicroelec.
