MLSM 2SD1819A
NPN Transistor
| Part No. | 2SD1819A |
|---|---|
| Datasheet | 2SD1819A Download |
| Manufacturer |  MLSM |
| Description | NPN Transistor |
| Buy | Stock & Price |
FEATURES
● High DC Current Gain● Complementary to 2SB1218A
● Low Collector to Emitter Saturation Voltage
APPLICATIONS

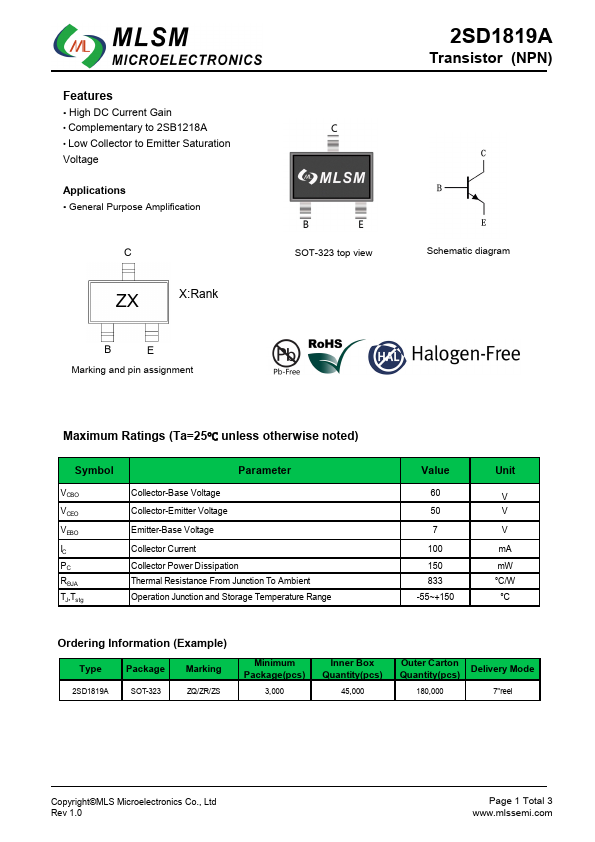

● General Purpose Amplification C ZX X:Rank B E Marking and pin assignment 2SD1819A Transistor (NPN) SOT-323 top view Schematic diagramMAXIMUM RATINGS
(Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC PC RΘJA TJ,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range Value 60 50 7 100 150 833 -55~+150 Unit V V V mA mW °C/W °C Ordering Information (Example) Type 2SD1819A Package SOT-323 Marking ZQ/ZR/ZS Minimum Package(pcs) 3,000 Inner Box Quantity(pcs) 45,000 Outer Carton Quantity(pcs) 180,000 Delivery Mode 7"reel Copyright©MLS Microelectronics Co., Ltd Rev 1.0 Page 1 Total 3 2SD1819A Transistor (NPN)ELECTRICAL CHARACTERISTICS

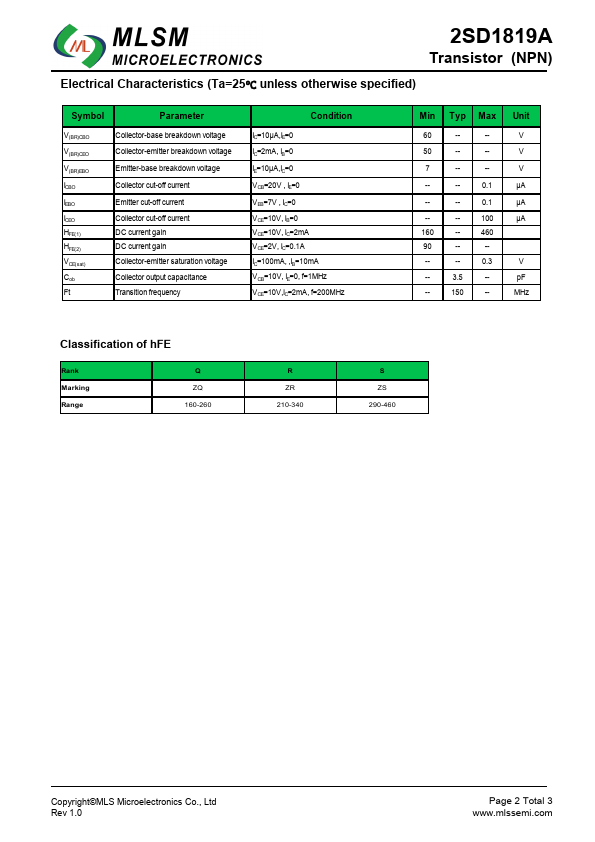

(Ta=25℃ unless otherwise specified) Symbol Parameter V(BR)CBO V(BR)CE...
