BL2300-3L Datasheet | Galaxy Microelectronics

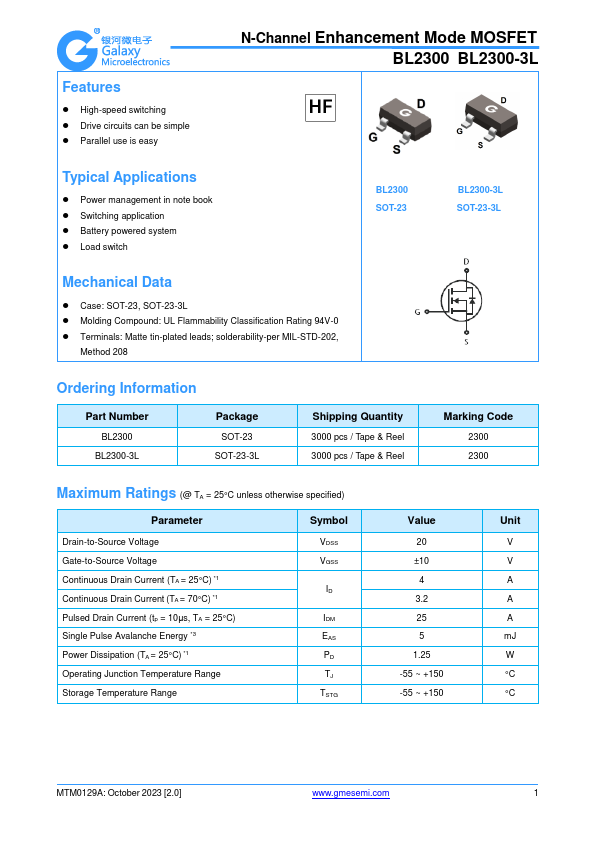

Features - High-speed switching - Drive circuits can be simple - Parallel use is easy N-Channel Enhancement Mode MOSFET BL2300 BL2300-3L Typical Applications - Power management in note book - Switching application - Battery powered system - Load switch BL2300 SOT-23 BL2300-3L SOT-23-3L Mechanical Data - Case: SOT-23, SOT-23-3L - Molding pound: UL Flammability Classification Rating 94V-0 - Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 Ordering Information Part Number BL2300 BL2300-3L Package SOT-23 SOT-23-3L Shipping Quantity 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel Marking Code 2300 2300 Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current (TA = 25°C) - 1 Continuous Drain Current (TA = 70°C) - 1 Pulsed Drain Current (tp = 10μs, TA = 25°C) Single Pulse Avalanche Energy - 3 Power Dissipation (TA = 25°C) - 1 Operating Junction Temperature Range Storage Temperature Range Symbol VDSS VGSS IDM EAS PD TJ TSTG Value 20 ±10 4 3.2 25 5 1.25 -55 ~ +150 -55 ~...
