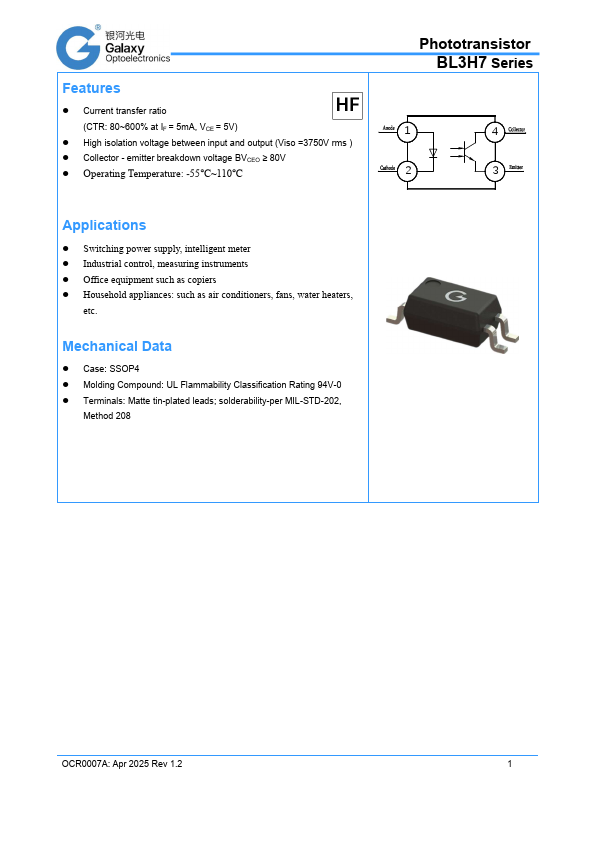

BL3H7A Overview
Key Features
- Current transfer ratio (CTR: 80~600% at IF = 5mA, VCE = 5V)
- High isolation voltage between input and output (Viso =3750V rms )
- emitter breakdown voltage BVCEO ≥ 80V
- Operating Temperature: -55℃~110℃
| Part | BL3H7A |
|---|---|
| Description | Phototransistor |
| Category | Transistor |
| Manufacturer | Galaxy Microelectronics |
| Size | 1.41 MB |
