Datasheet Summary
HL700
HL7005/HL7006

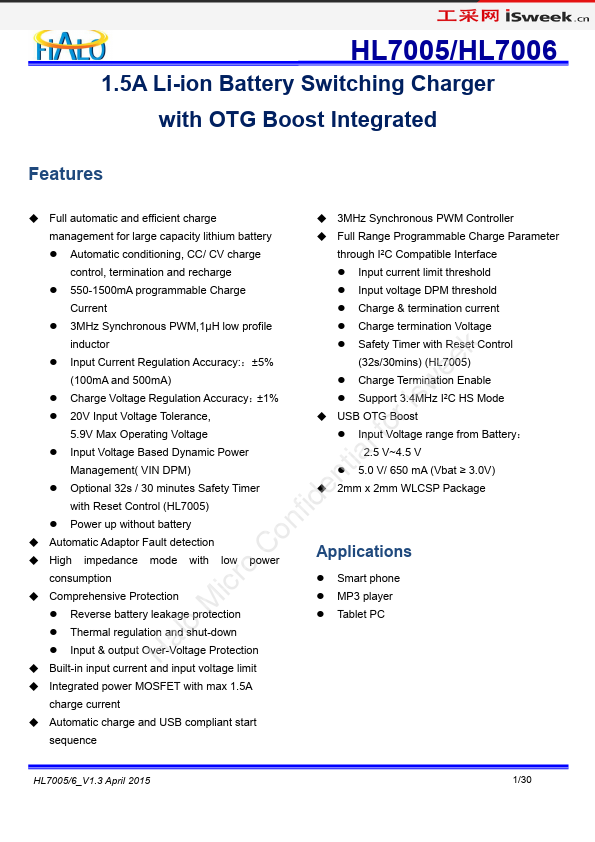

1.5A Li-ion Battery Switching Charger with OTG Boost Integrated
Features
- Full automatic and efficient charge
- 3MHz Synchronous PWM Controller management for large capacity lithium battery
- Full Range Programmable Charge Parameter
- Automatic conditioning, CC/ CV charge through I2C patible Interface control, termination and recharge
- Input current limit threshold
- 550-1500mA programmable Charge
- Input voltage DPM threshold
Current
- Charge & termination current
- 3MHz Synchronous PWM,1µH low profile
- Charge termination Voltage inductor eekk
- Input Current Regulation Accuracy:：±5% ee (100mA and 500mA) isisww
- Charge Voltage Regulation...
