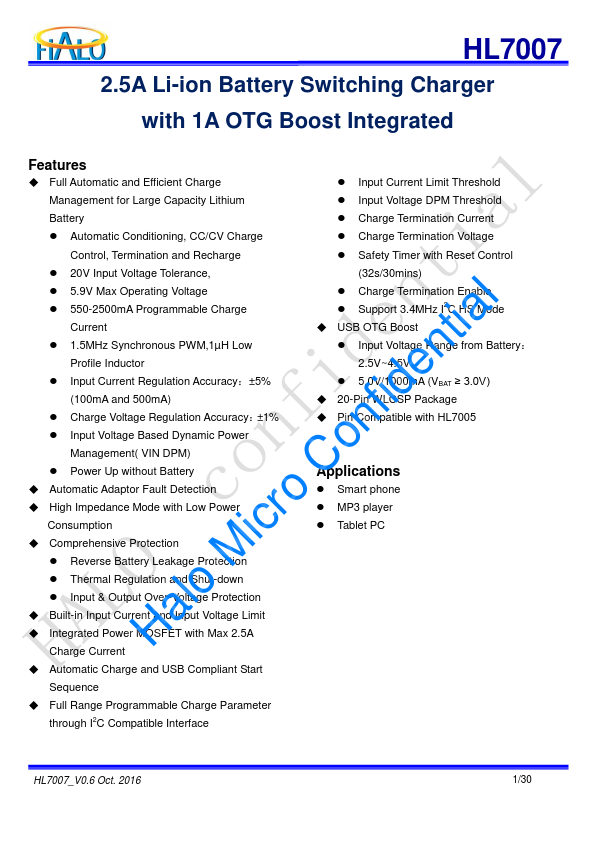

Datasheet Summary
HL700
2.5A Li-ion Battery Switching Charger with 1A OTG Boost Integrated
Features
- Full Automatic and Efficient Charge
- Input Current Limit Threshold
Management for Large Capacity Lithium
- Input Voltage DPM Threshold
Battery
- Charge Termination Current
- Automatic Conditioning, CC/CV Charge
- Charge Termination Voltage
Control, Termination and Recharge
- Safety Timer with Reset Control
- 20V Input Voltage Tolerance,
- 5.9V Max Operating Voltage l l
- 550-2500mA Programmable Charge titaia Current
- 1.5MHz Synchronous PWM,1µH Low nn Profile Inductor ee
- Input Current Regulation Accuracy：±5% fifdid (100mA and 500mA)
- Charge Voltage Regulation Accuracy：±1% nn
-...
