HT45F56

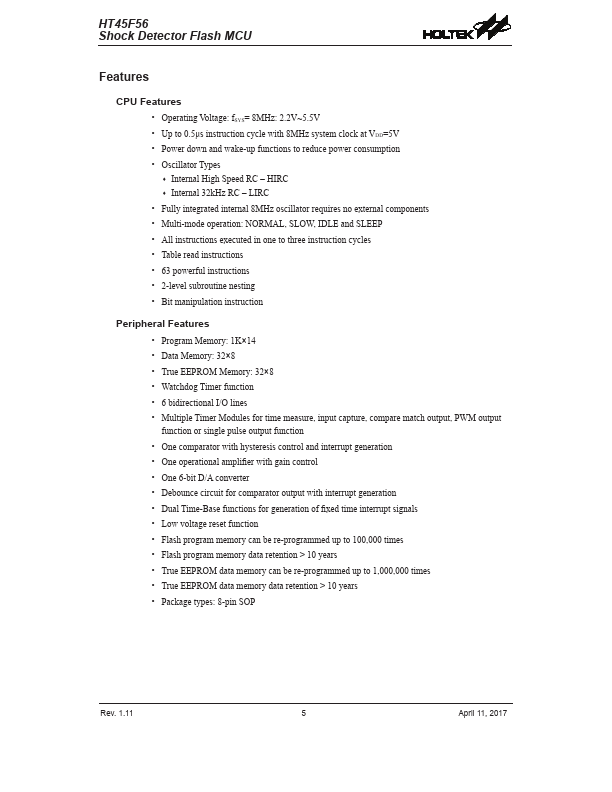

Features
CPU Features
- Operating Voltage: f SYS= 8MHz: 2.2V~5.5V
- Up to 0.5μs instruction cycle with 8MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator Types
- - Internal High Speed RC
- HIRC
- - Internal 32k Hz RC
- LIRC
- Fully integrated internal 8MHz oscillator requires no external ponents
- Multi-mode operation: NORMAL, SLOW, IDLE and SLEEP
- All instructions executed in one to three instruction cycles
- Table read instructions
- 63 powerful instructions
- 2-level subroutine nesting
- Bit manipulation instruction
Peripheral Features
- Program Memory: 1K×14
- Data Memory: 32×8
- True EEPROM Memory: 32×8
- Watchdog Timer function
- 6 bidirectional I/O lines
- Multiple Timer Modules for time measure, input capture, pare match output, PWM output function or single pulse output function
- One parator with hysteresis control and interrupt generation
- One operational amplifier with gain control
- One 6-bit D/A converter
- Debounce...
