HT45F5N

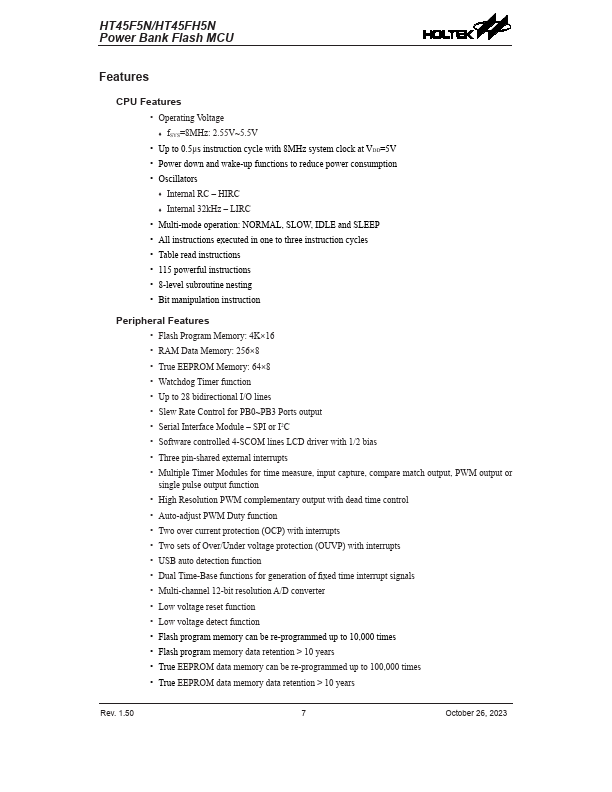

Features
CPU Features
- Operating Voltage
- f SYS=8MHz: 2.55V~5.5V
- Up to 0.5μs instruction cycle with 8MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillators
- Internal RC
- HIRC
- Internal 32k Hz
- LIRC
- Multi-mode operation: NORMAL, SLOW, IDLE and SLEEP
- All instructions executed in one to three instruction cycles
- Table read instructions
- 115 powerful instructions
- 8-level subroutine nesting
- Bit manipulation instruction
Peripheral Features
- Flash Program Memory: 4K×16
- RAM Data Memory: 256×8
- True EEPROM Memory: 64×8
- Watchdog Timer function
- Up to 28 bidirectional I/O lines
- Slew Rate Control for PB0~PB3 Ports output
- Serial Interface Module
- SPI or I2C
- Software controlled 4-S lines LCD driver with 1/2 bias
- Three pin-shared external interrupts
- Multiple Timer Modules for time measure, input capture, pare match output, PWM output or single pulse output function
- High Resolution PWM plementary output with dead...
