HT45F5Q-3

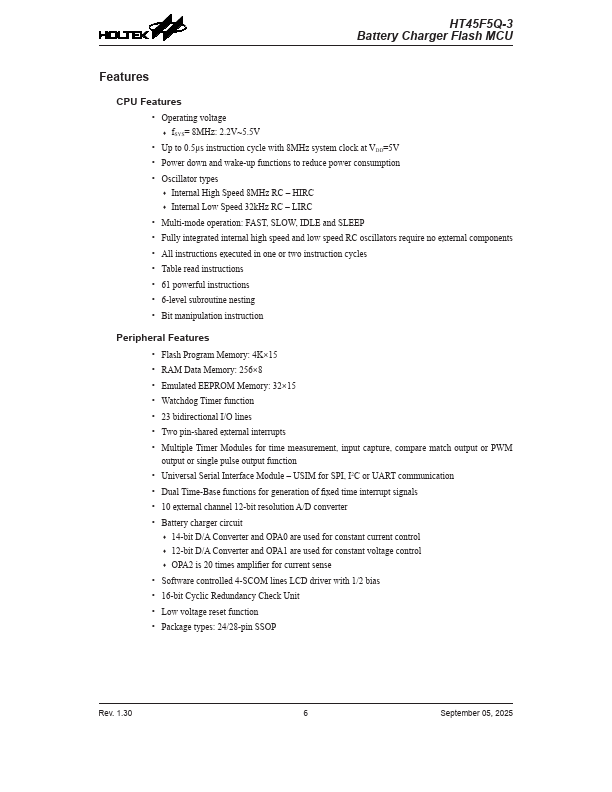

Features
CPU Features
- Operating voltage
- f SYS= 8MHz: 2.2V~5.5V
- Up to 0.5μs instruction cycle with 8MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- Internal High Speed 8MHz RC
- HIRC
- Internal Low Speed 32k Hz RC
- LIRC
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- Fully integrated internal high speed and low speed RC oscillators require no external ponents
- All instructions executed in one or two instruction cycles
- Table read instructions
- 61 powerful instructions
- 6-level subroutine nesting
- Bit manipulation instruction
Peripheral Features
- Flash Program Memory: 4K×15
- RAM Data Memory: 256×8
- Emulated EEPROM Memory: 32×15
- Watchdog Timer function
- 23 bidirectional I/O lines
- Two pin-shared external interrupts
- Multiple Timer Modules for time measurement, input capture, pare match output or PWM output or single pulse output function
- Universal Serial Interface Module
- USIM for SPI, I2C or UART...
