HT45F5Q-2

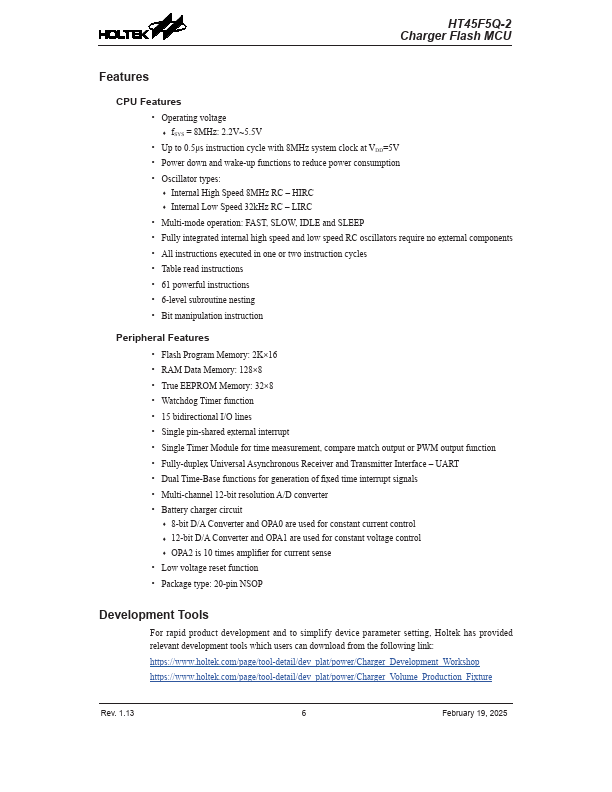

Features
CPU Features
- Operating voltage
- f SYS = 8MHz: 2.2V~5.5V
- Up to 0.5μs instruction cycle with 8MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types:
- Internal High Speed 8MHz RC
- HIRC
- Internal Low Speed 32k Hz RC
- LIRC
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- Fully integrated internal high speed and low speed RC oscillators require no external ponents
- All instructions executed in one or two instruction cycles
- Table read instructions
- 61 powerful instructions
- 6-level subroutine nesting
- Bit manipulation instruction
Peripheral Features
- Flash Program Memory: 2K×16
- RAM Data Memory: 128×8
- True EEPROM Memory: 32×8
- Watchdog Timer function
- 15 bidirectional I/O lines
- Single pin-shared external interrupt
- Single Timer Module for time measurement, pare match output or PWM output function
- Fully-duplex Universal Asynchronous Receiver and Transmitter Interface
- UART
- Dual Time-Base functions...
