HT45F5Q

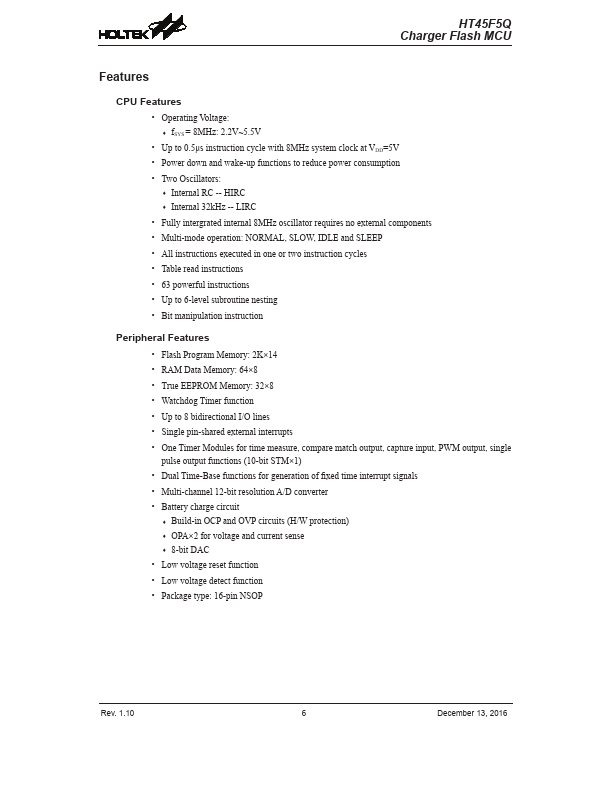

Features
CPU Features
- Operating Voltage:
- - f SYS = 8MHz: 2.2V~5.5V
- Up to 0.5μs instruction cycle with 8MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Two Oscillators:
- - Internal RC -- HIRC
- - Internal 32k Hz -- LIRC
- Fully intergrated internal 8MHz oscillator requires no external ponents
- Multi-mode operation: NORMAL, SLOW, IDLE and SLEEP
- All instructions executed in one or two instruction cycles
- Table read instructions
- 63 powerful instructions
- Up to 6-level subroutine nesting
- Bit manipulation instruction
Peripheral Features
- Flash Program Memory: 2K×14
- RAM Data Memory: 64×8
- True EEPROM Memory: 32×8
- Watchdog Timer function
- Up to 8 bidirectional I/O lines
- Single pin-shared external interrupts
- One Timer Modules for time measure, pare match output, capture input, PWM output, single pulse output functions (10-bit STM×1)
- Dual Time-Base functions for generation of fixed time interrupt signals
- Multi-channel 12-bit...
