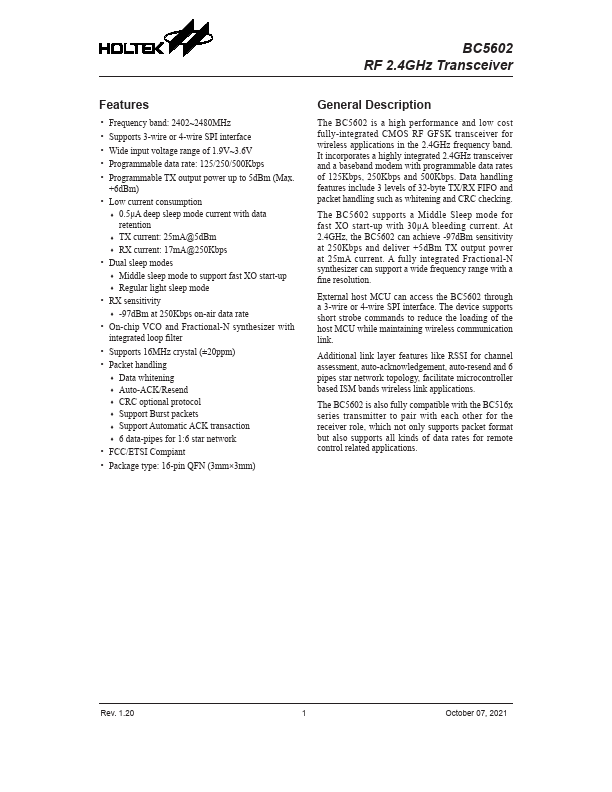

BC5602
Features
- Frequency band: 2402~2480MHz
- Supports 3-wire or 4-wire SPI interface
- Wide input voltage range of 1.9V~3.6V
- Programmable data rate: 125/250/500Kbps
- Programmable TX output power up to 5d Bm (Max.
+6d Bm)
- Low current consumption
- 0.5μA deep sleep mode current with data retention
- TX current: 25m A@5d Bm
- RX current: 17m A@250Kbps
- Dual sleep modes
- Middle sleep mode to support fast XO start-up
- Regular light sleep mode
- RX sensitivity
- -97d Bm at 250Kbps on-air data rate
- On-chip VCO and Fractional-N synthesizer with integrated loop filter
- Supports 16MHz crystal (±20ppm)
- Packet handling
- Data whitening
- Auto-ACK/Resend
- CRC optional protocol
- Support Burst packets
- Support Automatic ACK transaction
- 6 data-pipes for 1:6 star network
- FCC/ETSI piant
- Package type: 16-pin QFN (3mm×3mm)
General Description
The BC5602 is a high performance and low cost fully-integrated CMOS RF GFSK transceiver for wireless applications in the 2.4GHz frequency band. It...
