Collector
Emitter Breakdown Voltage
: V(BR)CEO = 60V
DC Current Gain
: hFE = 750(Min) @ IC= 2 A
Complement to Type BD678A
Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
Designed for use as output devi
The following content is an automatically extracted verbatim text
from the original manufacturer datasheet and is provided for reference purposes only.
View original datasheet text

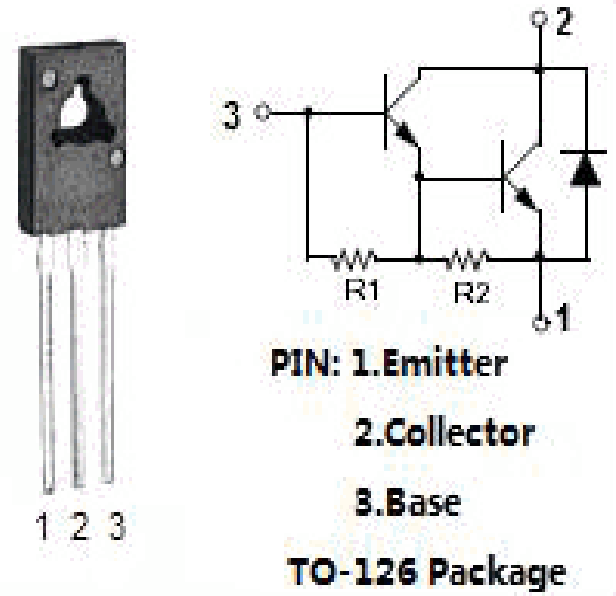

isc Silicon NPN Darlington Power Transistor
BD677A
DESCRIPTION ·Collector–Emitter Breakdown Voltage—
: V(BR)CEO = 60V ·DC Current Gain—
: hFE = 750(Min) @ IC= 2 A ·Complement to Type BD678A ·Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS ·Designed for use as output devices in complementary
general-purpose amplifier applications.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE
UNIT
VCBO
Collector-Base Voltage
60
V
VCEO
Collector-Emitter Voltage
60
V
VEBO
Emitter-Base Voltage
5
V
IC
Collector Current-Continuous
4
A
ICP
*Collector Current (Pulse)
6
A
IB
Base Current
PC
Collector Power Dissipation TC=25℃
Ti
Junction Temperature
Tstg
Storage Temperature Range
0.
