BAR81W - Silicon RF Switching Diode

📥 Download Datasheet

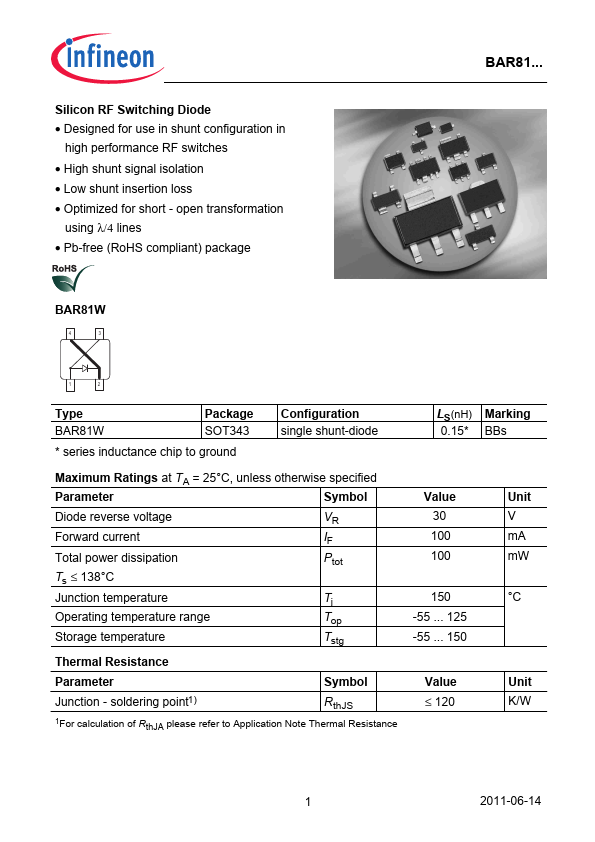

Datasheet preview – BAR81W

Datasheet Details

Part number BAR81W
Manufacturer Infineon Technologies AG
File Size 407.48 KB
Description Silicon RF Switching Diode
Datasheet download datasheet BAR81W Datasheet

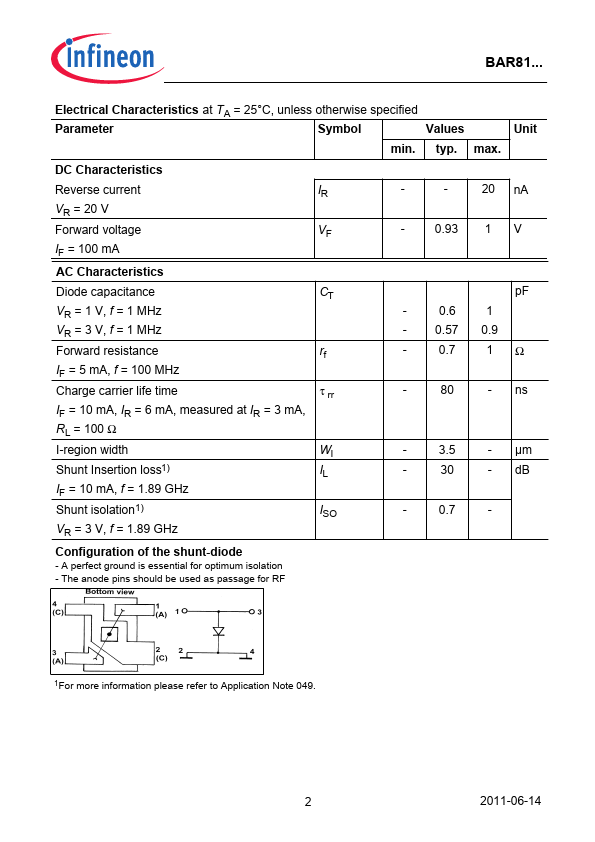

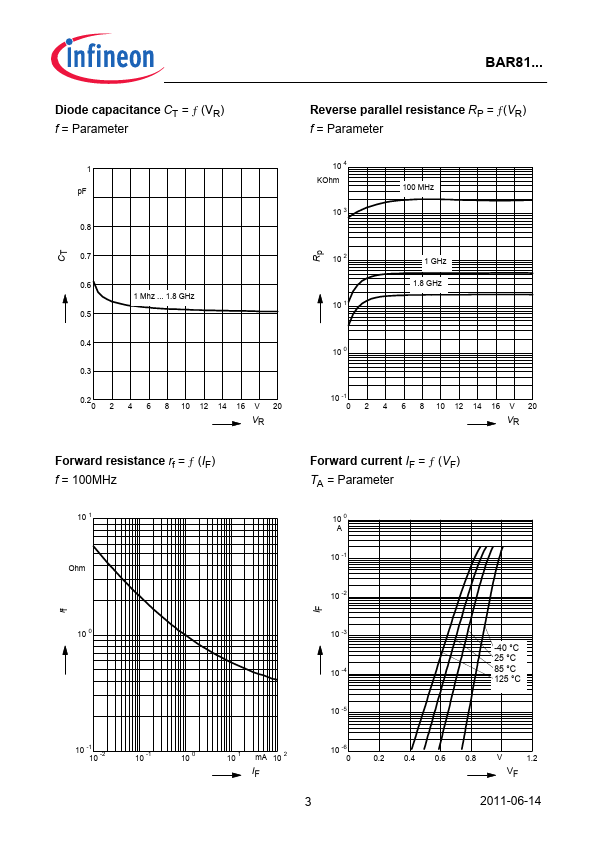

Additional preview pages of the BAR81W datasheet.

📁 Similar Datasheet

  • BAR81W - Silicon RF Switching Diode Preliminary data (Design for use in shunt configuration High shunt signal isolation Low shunt insertion loss) (Siemens Semiconductor Group)
  • BAR81 - Preliminary data Silicon RF Switching Diode (Design for use in shunt configuration High shunt signal isolation Low shunt insertion loss) (Siemens Semiconductor Group)
  • BAR80 - Silicon RF Switching Diode (Design for use in shunt configuration Hight shunt signal isolation Low shunt insertion loss) (Siemens Semiconductor Group)
  • BAR14 - Silicon PIN Diodes (Siemens Semiconductor Group)
  • BAR14 - Silicon PIN Diodes (Kexin)
  • BAR14-1 - Silicon PIN Diodes (Siemens Semiconductor Group)
  • BAR15 - Silicon PIN Diodes (Kexin)
  • BAR15-1 - Silicon PIN Diodes (Siemens Semiconductor Group)
  • BAR16 - Silicon PIN Diodes (Kexin)
  • BAR16-1 - Silicon PIN Diodes (Siemens Semiconductor Group)
Other Datasheets by Infineon Technologies AG

Full PDF Text Transcription

Click to expand full text
BAR81... Silicon RF Switching Diode  Designed for use in shunt configuration in high performance RF switches  High shunt signal isolation  Low shunt insertion loss  Optimized for short - open transformation using  lines BAR81W 4 3 1 2 Type BAR81W Package SOT343 Configuration single shunt-diode LS(nH) Marking 0.15* BBs * series inductance chip to ground Maximum Ratings at TA = 25°C, unless otherwise specified Parameter Diode reverse voltage Forward current Total power dissipation Ts  138°C Junction temperature Operating temperature range Storage temperature Thermal Resistance Parameter Junction - soldering point1) 1For Symbol VR IF Ptot Tj Top Tstg Symbol RthJS Value 30 100 100 150 -55 ... 125 -55 ...
