INC1001AC1 - SILICON NPN EPITAXIAL TYPE TRANSISTOR

Isahaya Electronics Corporation

General Description

INC1001AC1 is a silicon NPN epitaxial type transistor.

It is designed with high collector current and small VCE(sat).

📥 Download Datasheet

INC1001AC1 silicon npn epitaxial type transistor by Isahaya Electronics Corporation - Datasheet Preview

Datasheet Details

Part number	INC1001AC1
Manufacturer	Isahaya Electronics Corporation
File Size	276.88 KB
Description	SILICON NPN EPITAXIAL TYPE TRANSISTOR
Datasheet	INC1001AC1 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
INC800	Lensed A-Line Vertical Downlight	prescolite

Other Datasheets by Isahaya Electronics Corporation

Part Number	Description
INC1001AC1-T150	SILICON NPN EPITAXIAL TYPE TRANSISTOR
INC5002AP1-TH51	Silicon NPN Epitaxial Transistor
INC5003AH1	TRANSISTOR
INC6005AC1	TRANSISTOR
INC6006AC1	TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

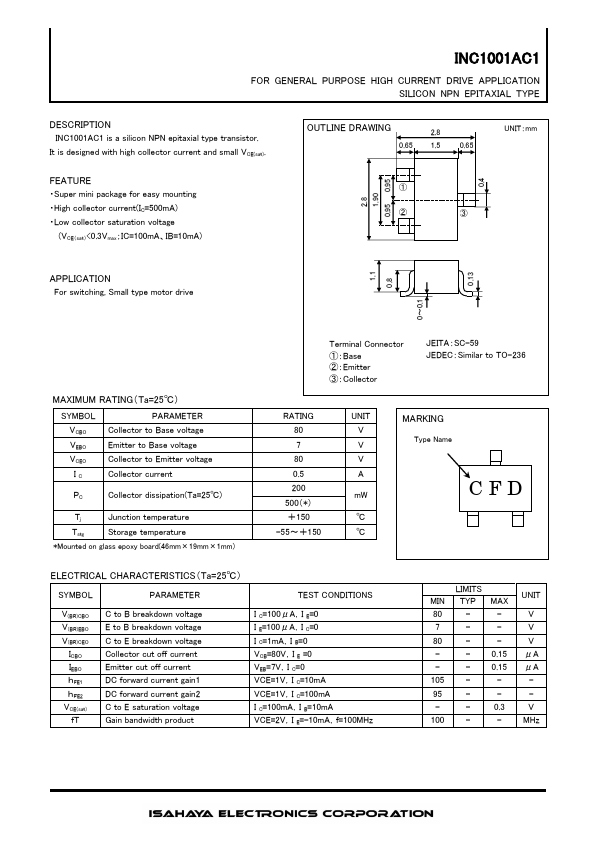

INC1001AC1 FOR GENERAL PURPOSE HIGH CURRENT DRIVE APPLICATION SILICON NPN EPITAXIAL TYPE DESCRIPTION INC1001AC1 is a silicon NPN epitaxial type transistor. It is designed with high collector current and small VCE(sat). FEATURE Super mini package for easy mounting High collector current(IC=500mA) Low collector saturation voltage (VCE（sat）<0.3Vmax；IC=100mA、IB=10mA) 2.8 1.90 0.95 0.95 0.4 OUTLINE DRAWING 2.8 0.65 1.5 0.65 UNIT：mm ① ② ③ APPLICATION For switching, Small type motor drive 1.1 0.8 0～0.1 0.
