This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | 3DD13009K |
|---|---|
| Datasheet | 3DD13009K 3DD13009K_JILINSINO Datasheet (PDF) |
| File Size | 404.28 KB |
| Manufacturer | JILIN SINO-MICROELECTRONICS |
| Description | HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR |
|
|

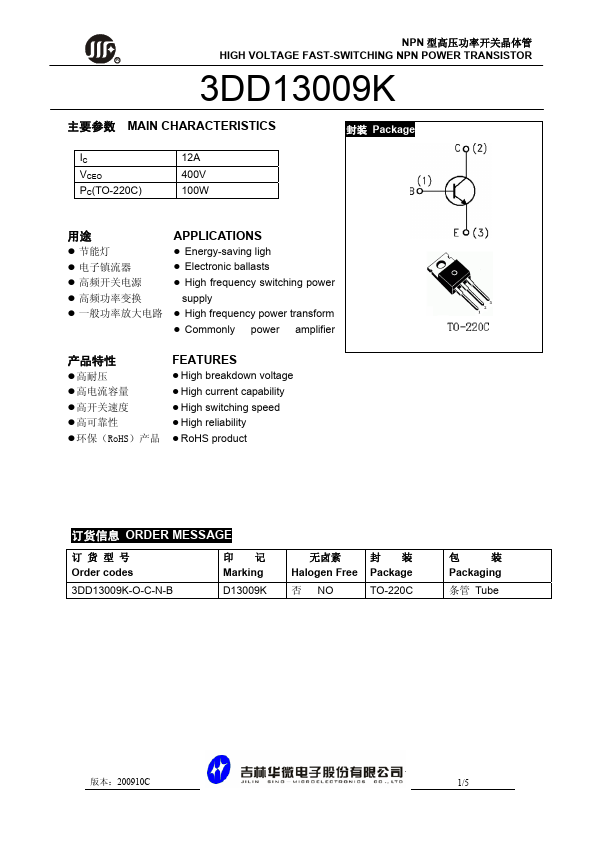

NPN 型高压功率开关晶体管 HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR R 3DD13009K 主要参数 MAIN CHARACTERISTICS 封装 Package IC VCEO PC(TO-220C) 12A 400V 100W 用途 z 节能灯 z 电子镇流器 z 高频开关电源 z 高频功率变换 z 一般功率放大电路 APPLICATIONS z Energy-saving ligh z Electronic ballasts z High frequency switching power supply z High frequency power transform z monly power amplifier 产品特性 z 高耐压 z 高电流容量 z 高开关速度 z 高可靠性 z 环保（RoHS）产品.
