JWH5276 - 7V/6A Sync. Step-Down Converter

General Description

The JWH®5276 is a monolithic buck switching regulator based on a proprietary I2 control for fast transient response.

Operating with an input range of 2.95V~7V, JWH5276 delivers 6A of continuous output current with integrated two MOSFETs.

Key Features

  • 2.95V to 7V operating input range.
  • Up to 6A output current.
  • Internal 12mΩ High-Side and 12mΩ Low-Side MOSFETs.
  • Adjustable switching frequency.
  • Adjustable soft-start time.
  • Power good indicator.
  • Input under voltage lockout.
  • Output short circuit protection.
  • Thermal protection.
  • Available in QFN3X3-16 package.

📥 Download Datasheet

Datasheet Details

Part number JWH5276
Manufacturer JoulWatt
File Size 1.94 MB
Description 7V/6A Sync. Step-Down Converter
Datasheet download datasheet JWH5276 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by JoulWatt

Part Number Description
JWH5084 17V/12A Sync. Step-Down Converter
JWH5085 16V/12A Sync. Step-Down Converter
JWH5087A 16V/20A Sync. Step-Down Converter
JWH5123 65V/3.5A Asynchronous Step-Down Converter
JWH5125 5V/5A Asynchronous Step-Down Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

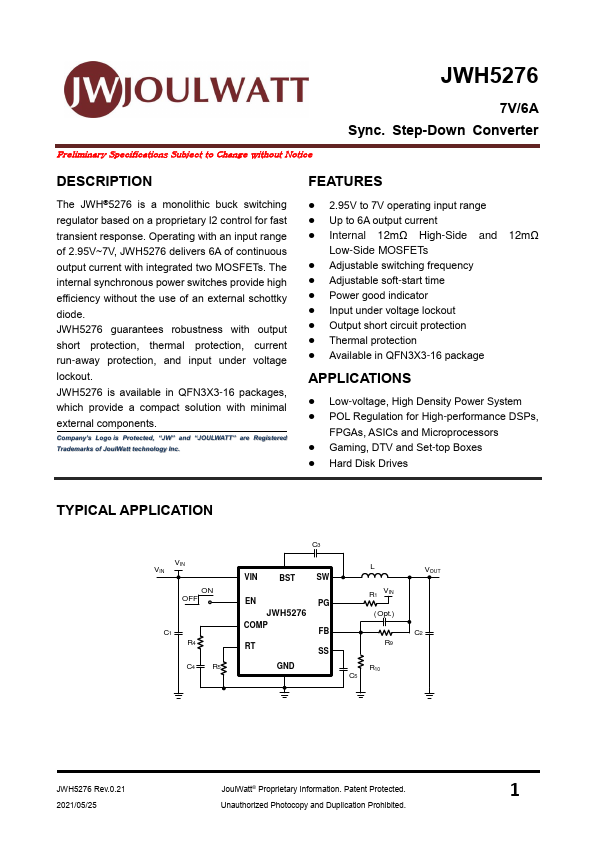

JWH5276 Preliminary Specifications Subject to Change without Notice 7V/6A Sync. Step-Down Converter DESCRIPTION The JWH®5276 is a monolithic buck switching regulator based on a proprietary I2 control for fast transient response. Operating with an input range of 2.95V~7V, JWH5276 delivers 6A of continuous output current with integrated two MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external schottky diode. JWH5276 guarantees robustness with output short protection, thermal protection, current run-away protection, and input under voltage lockout. JWH5276 is available in QFN3X3-16 packages, which provide a compact solution with minimal external components.
