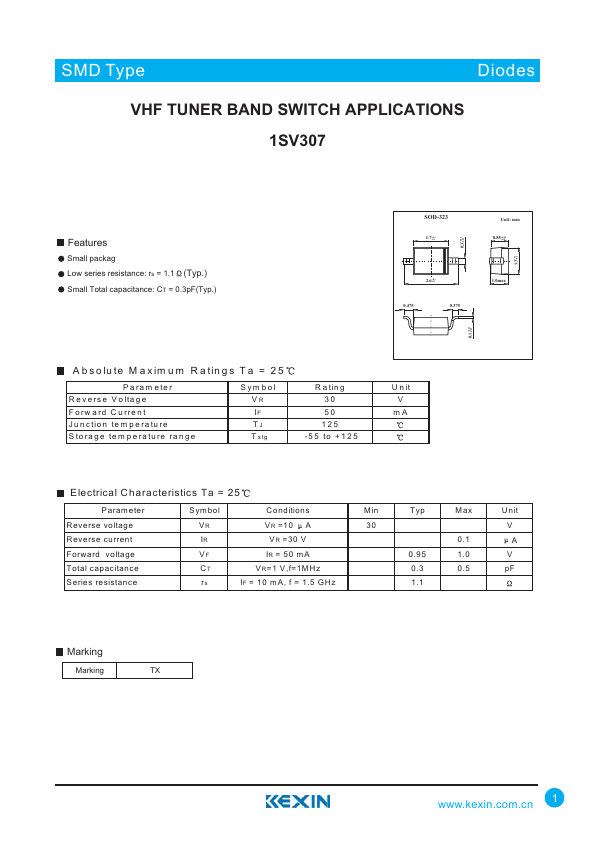

1SV307
Features
Small packag
Low series resistance: rs = 1.1 (Typ.)
Small Total capacitance: CT = 0.3p F(Typ.)
SOD-323
1.7+0.1 -0.1
Unit: mm 0.85+0.05
-0.05
+0.05 0.3 -0.05
+0.1 1.3 -0.1
2.6+0.1 -0.1
1.0max
+0.05 0.1 -0.02
A b so lu te M a xim u m R a tin g s T a = 2 5
P aram eter R e ve rse V o lta g e Forw ard C urrent Ju n ctio n te m p e ra tu re S torage tem perature range
Sym bol VR IF TJ T stg
R a tin g 30 50 125
-55 to + 125
U n it V m A
Electrical Characteristics Ta = 25
P aram eter Reverse voltage Reverse current Forward voltage Total capacitance Series resistance
Symbol
C o n d itio n s
M in
VR =10 A
VR =30 V
IR = 50 m A
VR=1 V,f=1MHz rs
IF = 10 m A, f = 1.5 GHz
Typ
0.95 0.3 1.1
Max
0.1 1.0 0.5
U n it V A V p...
