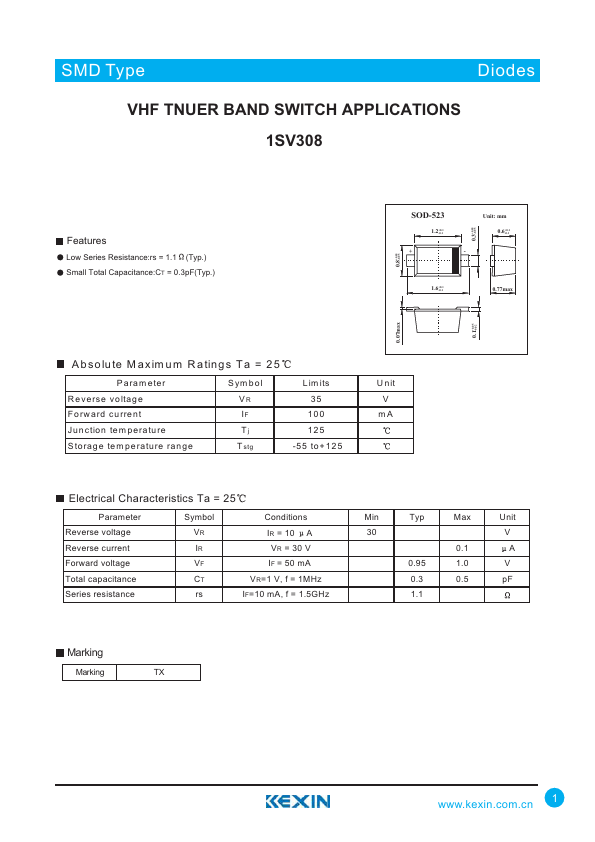

1SV308
Features
Low Series Resistance:rs = 1.1 (Typ.) Small Total Capacitance:CT = 0.3p F(Typ.)
+0.05 0.8 -0.05
SOD-523
1.2+0.1 -0.1
+
+0.05 0.3 -0.05
Unit: mm 0.6+0.1
-0.1
- 1.6+0.1 -0.1
0.77max
+0.05 0.1 -0.02
0.07max
Absolute M axim um R atings Ta = 25
Param eter R everse voltage Forward current Junction tem perature Storage tem perature range
S ym bol VR IF Tj T stg
Lim its 35 100 125
-55 to+125
U nit V m A
Electrical Characteristics Ta = 25
Parameter Reverse voltage Reverse current Forward voltage Total capacitance Series resistance
Symbol VR IR VF CT rs
Conditions IR = 10 A VR = 30 V IF = 50 m A VR=1 V, f = 1MHz IF=10 m A, f = 1.5GHz
Min
Typ
Max
Unit
0.5 p F
Marking
Marking
