2KK5074DFN - N-Channel MOSFET

Key Features

  • s.
  • VDS = 40 V.
  • ID = 150 A.
  • RDS(ON) < 2.4 mΩ @ VGS=10V.
  • RDS(ON) < 3.5 mΩ @ VGS=4.5V.
  • 100% UIS Tested.
  • 100% Rg Tested PDFN5x6-8 S D S D S D G D.
  • Absolute Maximum Ratings (TA = 25℃ unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (Note 1) TC = 25℃ ID Pulsed Drain Current (Note 2) IDM Avalanche Energy (Note 2) L = 0.3mH EAS Power Dissipation (Note 3) TC = 25℃ PD TC = 100℃ T.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2KK904 N-Channel Silicon Power MOS FET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2KK5075DFN N-Channel MOSFET
2KK5076DFN N-Channel MOSFET
2KK5001DS N-Channel Enhancement MOSFET
2KK5002 N-Channel Enhancement MOSFET
2KK5003 N-Channel Enhancement MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

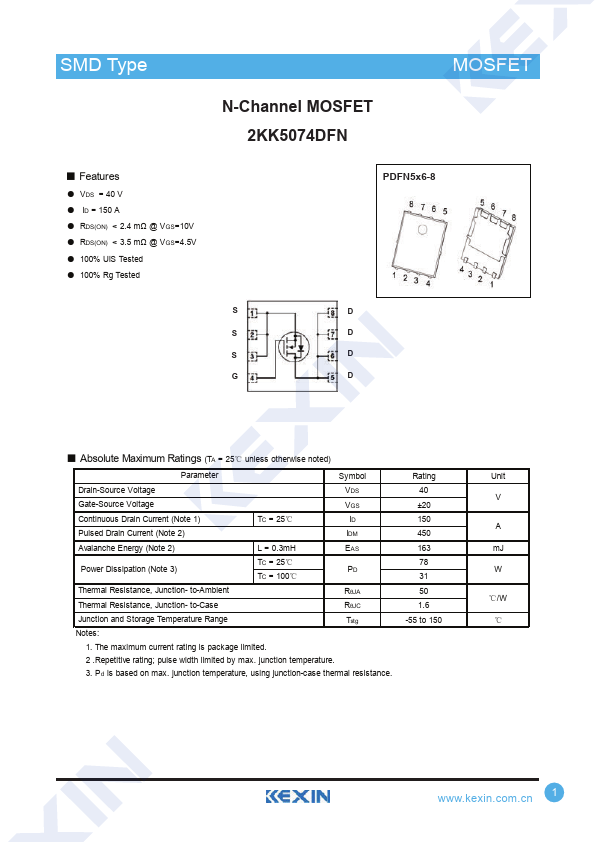

SMD Type N-Channel MOSFET 2KK5074DFN MOSFET ■ Features ● VDS = 40 V ● ID = 150 A ● RDS(ON) < 2.4 mΩ @ VGS=10V ● RDS(ON) < 3.5 mΩ @ VGS=4.5V ● 100% UIS Tested ● 100% Rg Tested PDFN5x6-8 S D S D S D G D ■ Absolute Maximum Ratings (TA = 25℃ unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (Note 1) TC = 25℃ ID Pulsed Drain Current (Note 2) IDM Avalanche Energy (Note 2) L = 0.3mH EAS Power Dissipation (Note 3) TC = 25℃ PD TC = 100℃ Thermal Resistance, Junction- to-Ambient RθJA Thermal Resistance, Junction- to-Case RθJC Junction and Storage Temperature Range Tstg Notes: 1. The maximum current rating is package limited. 2 .Repetitive rating; pulse width limited by max. junction temperature. 3.
