2KK5076DFN - N-Channel MOSFET

Key Features

  • s.
  • VDS = 80 V.
  • ID (at VGS=10V) = 48 A.
  • RDS(ON) (at VGS = 10 V) < 6.5 mΩ.
  • RDS(ON) (at VGS = 4.5 V) < 8.5 mΩ.
  • 100% UIS Tested.
  • 100% Rg Tested S S S G PDFN5x6-8(PDFNWB5x6-8L) D D D D.
  • Absolute Maximum Ratings (TA = 25℃ unless otherwise noted) Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS 80 V VGS ±20 TC = 25℃ 48 Continuous Drain Current (Note 1) ID TC = 100℃ 42.5 A Pulsed Drain Current (Note 2) IDM 170 C.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2KK904 N-Channel Silicon Power MOS FET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2KK5074DFN N-Channel MOSFET
2KK5075DFN N-Channel MOSFET
2KK5001DS N-Channel Enhancement MOSFET
2KK5002 N-Channel Enhancement MOSFET
2KK5003 N-Channel Enhancement MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

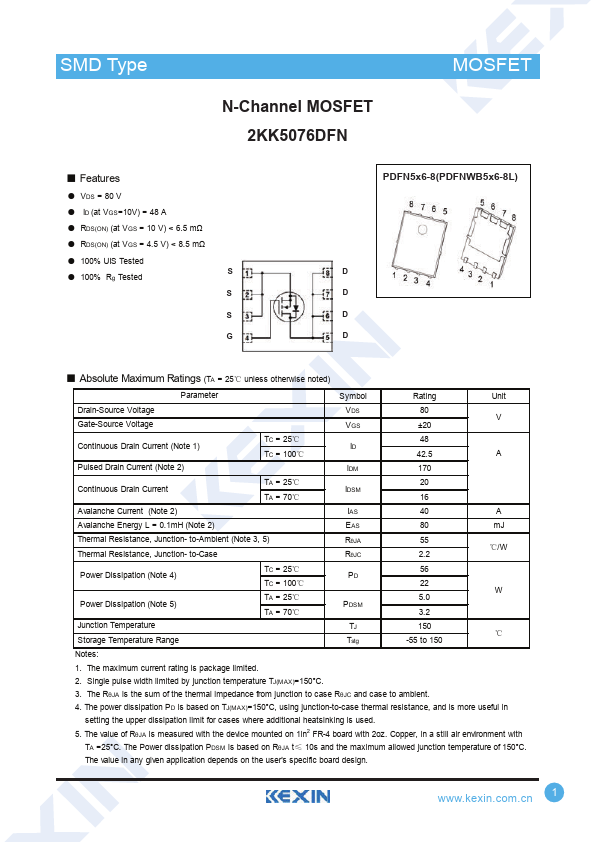

SMD Type N-Channel MOSFET 2KK5076DFN MOSFET ■ Features ● VDS = 80 V ● ID (at VGS=10V) = 48 A ● RDS(ON) (at VGS = 10 V) < 6.5 mΩ ● RDS(ON) (at VGS = 4.5 V) < 8.5 mΩ ● 100% UIS Tested ● 100% Rg Tested S S S G PDFN5x6-8(PDFNWB5x6-8L) D D D D ■ Absolute Maximum Ratings (TA = 25℃ unless otherwise noted) Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS 80 V VGS ±20 TC = 25℃ 48 Continuous Drain Current (Note 1) ID TC = 100℃ 42.5 A Pulsed Drain Current (Note 2) IDM 170 Continuous Drain Current TA = 25℃ 20 IDSM TA = 70℃ 16 Avalanche Current (Note 2) IAS 40 A Avalanche Energy L = 0.1mH (Note 2) EAS 80 mJ Thermal Resistance, Junction- to-Ambient (Note 3, 5) Thermal Resistance, Junction- to-Case RθJA 55 RθJC 2.
