2SA1256 - PNP Transistors

Key Features

  • High fT (230MHz typ), and small Cre (1.1pF typ). Small NF (2.5dB typ). +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector dissipation Junction temperature Storage temperature Symbol Rating Unit VCBO -30 V VCEO -20 V VEBO -5 V IC -30 mA.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1256 PNP Epitaxial Planar Silicon Transistors Sanyo Semicon Device
2SA1250 SILICON POWER TRANSISTOR SavantIC
2SA1250 POWER TRANSISTOR Inchange Semiconductor
2SA1252 PNP/NPN Epitaxial Planar Silicon Transistors Sanyo Semicon Device
2SA1253 PNP/NPN Epitaxial Planar Silicon Transistors Sanyo Semicon Device

Other Datasheets by Kexin Semiconductor

Part Number Description
2SA1252 PNP Transistors
2SA1257 PNP Transistors
2SA1200 PNP Transistors
2SA1201 Transistors
2SA1202 Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

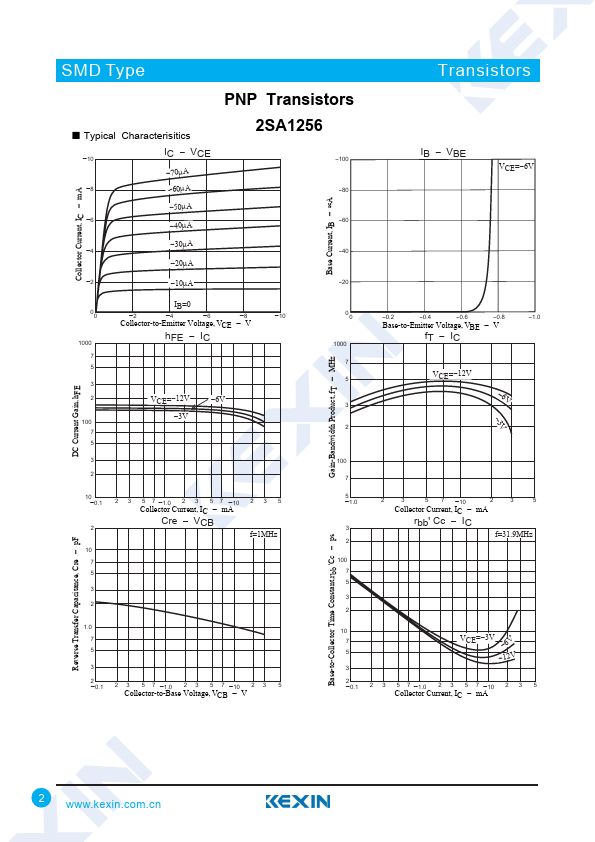

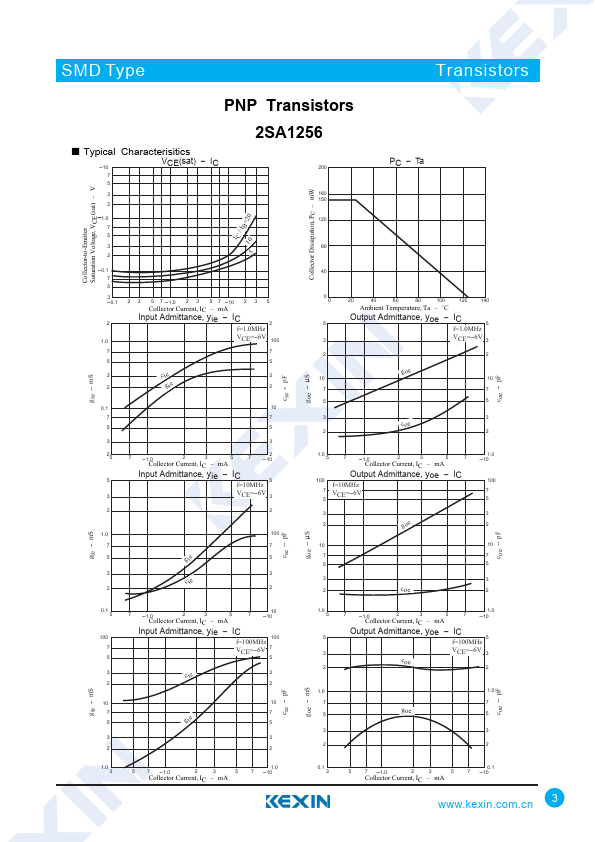

SMD Type TransistIoCrs PNP Transistors 2SA1256 Features High fT (230MHz typ), and small Cre (1.1pF typ). Small NF (2.5dB typ). +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector dissipation Junction temperature Storage temperature Symbol Rating Unit VCBO -30 V VCEO -20 V VEBO -5 V IC -30 mA PC 150 mW Tj 125 Tstg -55 to +125 0-0.1 +0.1 0.38 -0.1 1.Base 2.Emitter 3.
