Complementary to 2SB1115
1.70 0.1
0.42 0.1
0.46 0.1.
Absolute Maximum Ratings Ta = 25℃
Parameter
Collector - Base Voltage
Collector - Emitter Voltage
Emitter - Base Voltage
Collector Current - Continuous
Collector Current - Pulse
(Note.1)
Collector Power Dissipation
Junction Temperature
Storage Temperature Range
Note.1:PW ≤ 10 ms, Duty cycle ≤ 20%. Symbol VCBO VCEO VEBO IC ICP PC TJ Tstg
Rating 60 50 6 1 2 2 150
-55 to 150.
Full PDF Text Transcription for 2SD1615 (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
2SD1615. For precise diagrams, and layout, please refer to the original PDF.

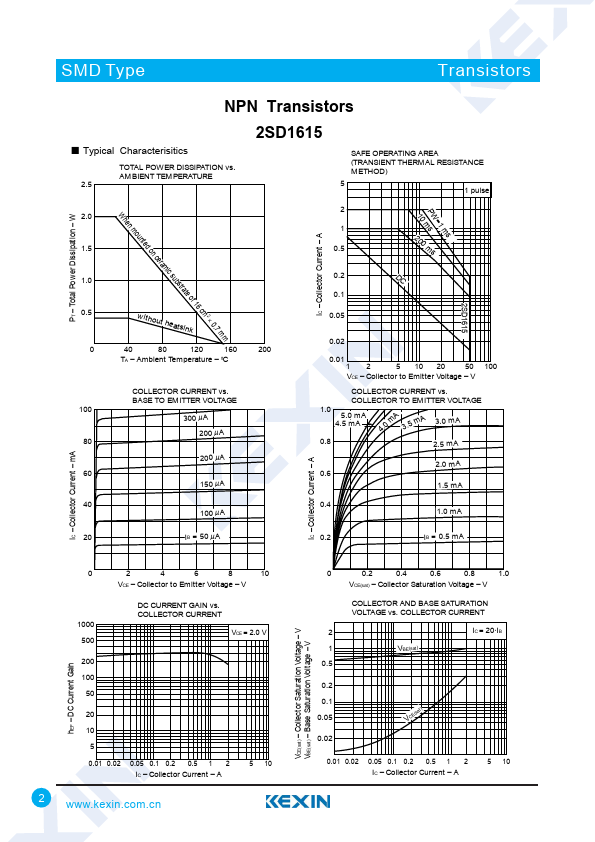

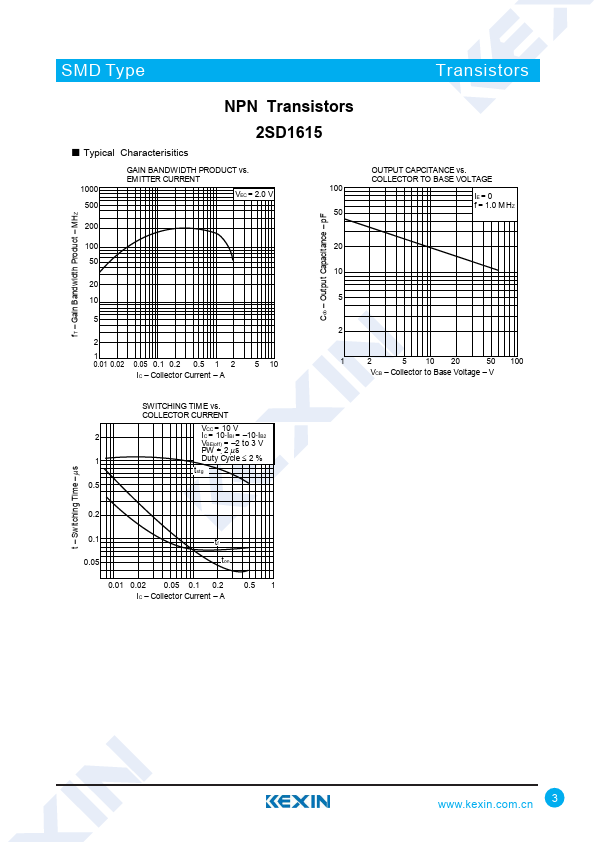

SMD Type NPN Transistors 2SD1615 Transistors ■ Features ● Low VCE(sat) ● Complementary to 2SB1115 1.70 0.1 0.42 0.1 0.46 0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter...
