Very small size making it easy to provide highdensity,
small-sized hybrid IC’s.
Complementary to 2SB1118
1.70 0.1
0.42 0.1
0.46 0.1.
Absolute Maximum Ratings Ta = 25℃
Parameter
Symbol
Rating
Collector - Base Voltage
VCBO
20
Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous
VCEO
15
VEBO
5
IC
0.7
Collector Current - Pulse
ICP
1.5
Collector Power Dissipation
(Note.1)
0.5 PC
1.

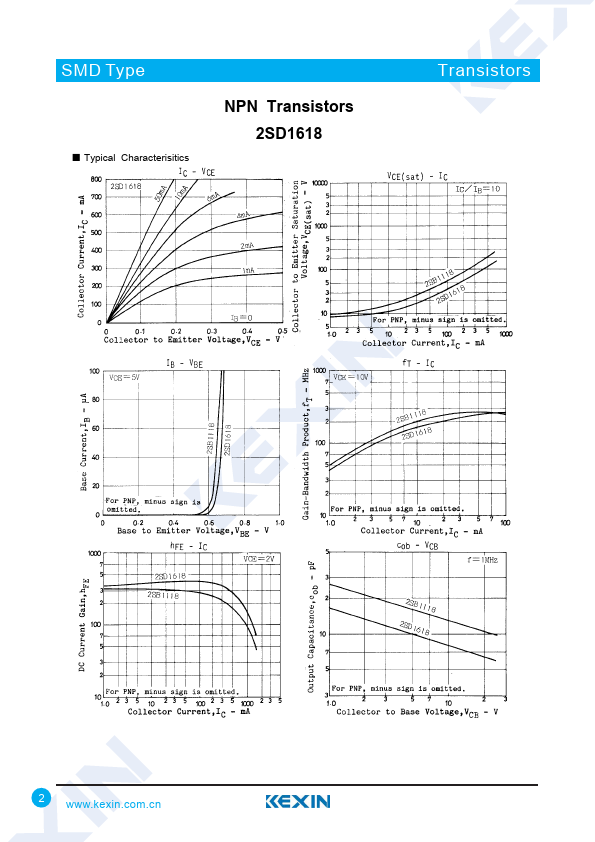

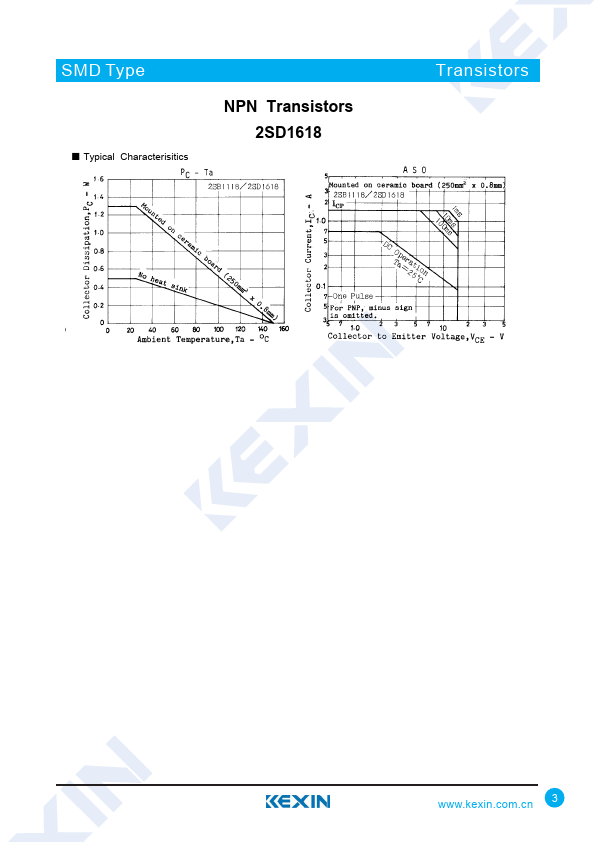

Full PDF Text Transcription for 2SD1618 (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
2SD1618. For precise diagrams, and layout, please refer to the original PDF.
SMD Type NPN Transistors 2SD1618 Transistors ■ Features ● Low collector-to-emitter saturation voltage. ● Very small size making it easy to provide highdensity, small-size...
View more extracted text
e. ● Very small size making it easy to provide highdensity, small-sized hybrid IC’s. ● Complementary to 2SB1118 1.70 0.1 0.42 0.1 0.46 0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Collector - Base Voltage VCBO 20 Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous VCEO 15 VEBO 5 IC 0.7 Collector Current - Pulse ICP 1.5 Collector Power Dissipation (Note.1) 0.5 PC 1.3 Junction Temperature Storage Temperature Range TJ 150 Tstg -55 to 150 Note.1:Mounted on ceramic board (250mm 2 ×0.
