2SJ288 - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-60V.
  • ID =-0.5 A.
  • RDS(ON) ＜ 3Ω (VGS =-10V).
  • RDS(ON) ＜ 4Ω (VGS =-4V) 1.70 0.1 0.42 0.1 0.46 0.1 1.Gate 2.Drain 3.Source.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS -60 V VGS ±15 Continuous Drain Current Pulsed Drain Current (Note.1) ID -0.5 A IDM -2 Power Dissipation Tc = 25℃ PD 3.5 W 1.3 Junction Temperature Junction Storage Temperature Range TJ 150 ℃ Tstg -55 to.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SJ288 60V P-Channel MOSFET VBsemi
2SJ288 P-Channel Silicon MOSFET Sanyo
2SJ280 SILICON P-CHANNEL MOSFET Hitachi Semiconductor
2SJ281 P-Channel MOSFET Sanyo Semicon Device
2SJ284 P-Channel MOSFET Sanyo Semicon Device

Other Datasheets by Kexin Semiconductor

Part Number Description
2SJ287 P-Channel MOSFET
2SJ203 P-Channel MOSFET
2SJ204 P-Channel MOSFET
2SJ205 P-Channel MOSFET
2SJ206 P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

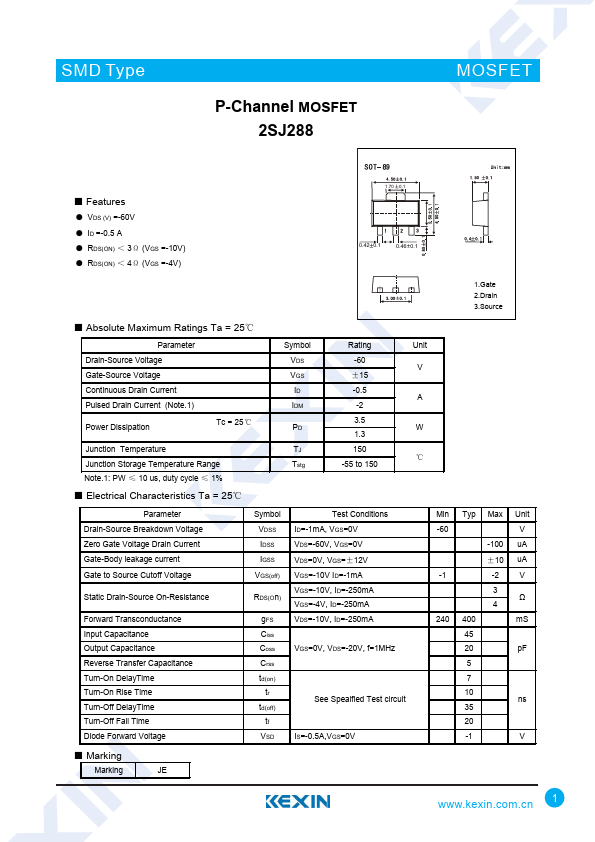

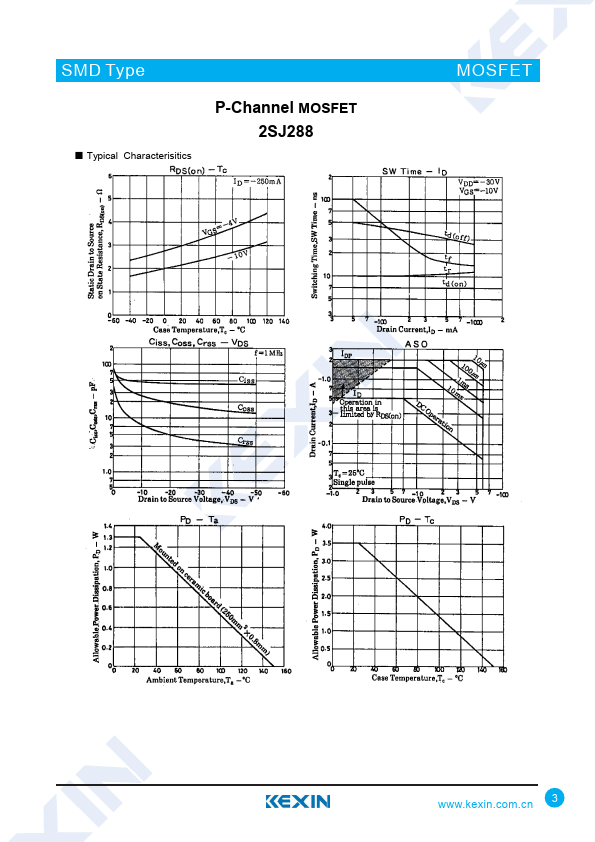

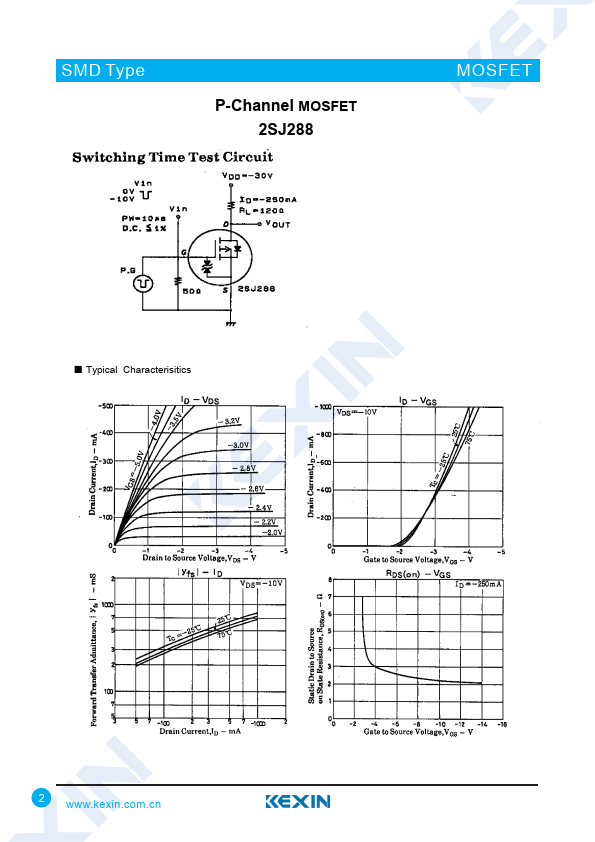

SMD Type P-Channel MOSFET 2SJ288 MOSFET ■ Features ● VDS (V) =-60V ● ID =-0.5 A ● RDS(ON) ＜ 3Ω (VGS =-10V) ● RDS(ON) ＜ 4Ω (VGS =-4V) 1.70 0.1 0.42 0.1 0.46 0.1 1.Gate 2.Drain 3.Source ■ Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS -60 V VGS ±15 Continuous Drain Current Pulsed Drain Current (Note.1) ID -0.5 A IDM -2 Power Dissipation Tc = 25℃ PD 3.5 W 1.3 Junction Temperature Junction Storage Temperature Range TJ 150 ℃ Tstg -55 to 150 Note.
