2SJ492-ZJ - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-60V.
  • ID =-20 A.
  • RDS(ON) ＜ 100m Ω (VGS =-10V).
  • RDS(ON) ＜ 185mΩ (VGS =-4V).
  • Low Ciss: Ciss = 1210 pF (TYP. ) Drain Gate Body Diode Gate Protection Diode Source.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage (Note.1) Continuous Drain Current Pulsed Drain Current (Note.2) Single Avalanche Current (Note.3) Power Dissipation Single Avalanche Energy Tc = 25℃ Ta = 25℃ (Note.3) Thermal Resistance. Junction- to-A.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SJ492 P-Channel MOSFET NEC
2SJ492 60V P-Channel MOSFET VBsemi
2SJ49 P-Channel MOSFET Hitachi Semiconductor
2SJ493 P-Channel MOSFET NEC
2SJ494 P-Channel MOSFET NEC

Other Datasheets by Kexin Semiconductor

Part Number Description
2SJ492 MOS Field Effect Transistor
2SJ461 P-Channel MOSFET
2SJ0582 Silicon P-channel power MOSFET
2SJ130S P-Channel MOSFET
2SJ166 P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

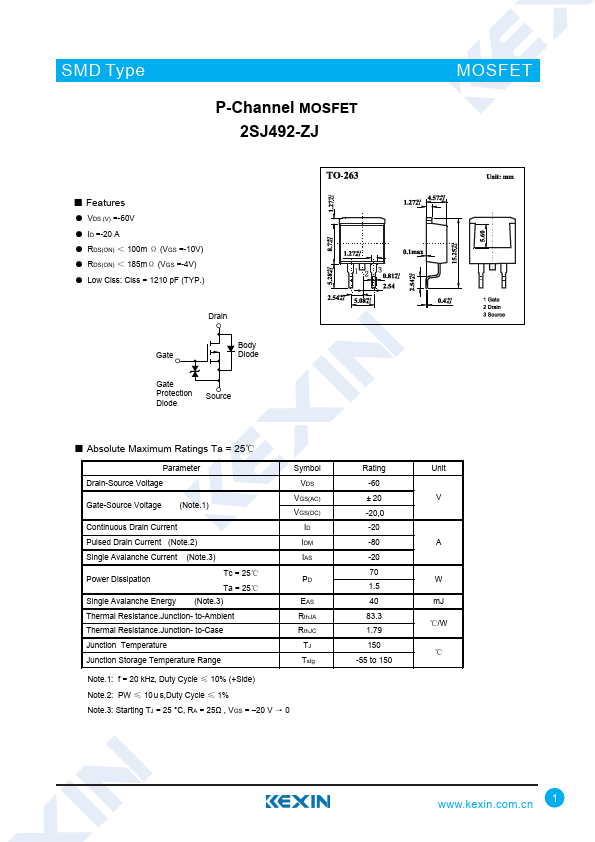

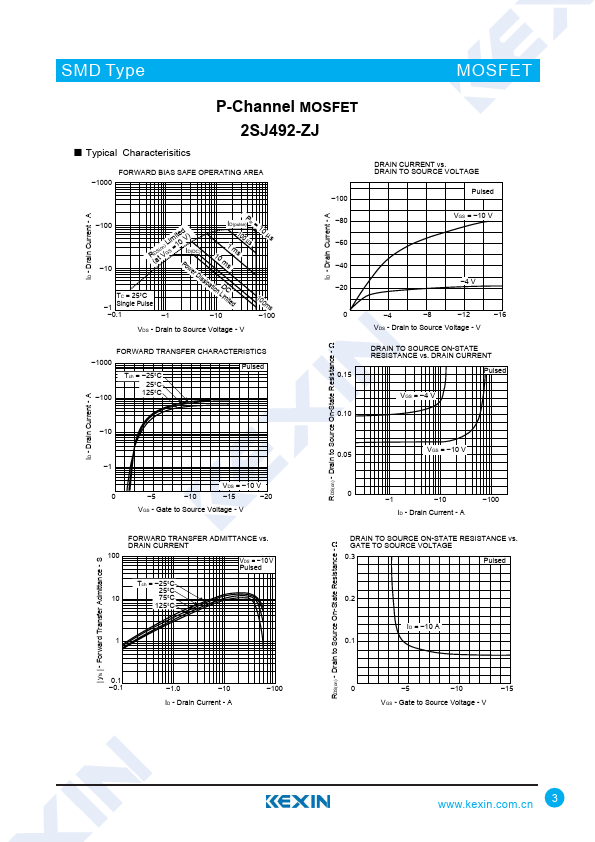

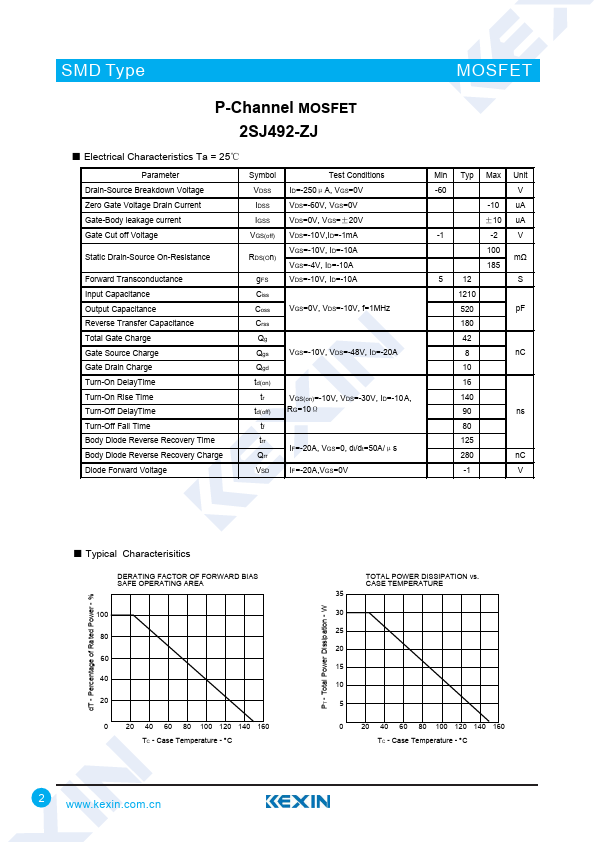

SMD Type P-Channel MOSFET 2SJ492-ZJ MOSFET ■ Features ● VDS (V) =-60V ● ID =-20 A ● RDS(ON) ＜ 100m Ω (VGS =-10V) ● RDS(ON) ＜ 185mΩ (VGS =-4V) ● Low Ciss: Ciss = 1210 pF (TYP.) Drain Gate Body Diode Gate Protection Diode Source ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage (Note.1) Continuous Drain Current Pulsed Drain Current (Note.2) Single Avalanche Current (Note.3) Power Dissipation Single Avalanche Energy Tc = 25℃ Ta = 25℃ (Note.3) Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Case Junction Temperature Junction Storage Temperature Range Symbol VDS VGS(AC) VGS(DC) ID IDM IAS PD EAS RthJA RthJC TJ Tstg Note.1: f = 20 kHz, Duty Cycle ≤ 10% (+Side) Note.2: PW ≤ 10 u s,Duty Cycle ≤ 1% Note.
