2SK2926-ZJ - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 60V.
  • ID = 15 A (VGS = 10V).
  • RDS(ON) ＜ 55mΩ (VGS = 10V).
  • RDS(ON) ＜ 110mΩ (VGS = 4V).
  • High speed switching D G S.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Body to Drain Diode Reverse Drain Current Avalanche Current (Note.2) Power Dissipation (Note.3) Avalanche Energy (Note.2) Junction Temperature Storage Temperature Range Symbol Rating Unit.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK2926 Silicon N-Channel MOSFET Hitachi Semiconductor
2SK2926L Silicon N-Channel MOSFET Hitachi Semiconductor
2SK2926S Silicon N-Channel MOSFET Hitachi Semiconductor
2SK2920 Silicon N-Channel MOS Type Field Effect Transistor Toshiba Semiconductor
2SK2922 Silicon N Channel MOS FET Hitachi Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK2926S N-Channel Silicon MOSFET
2SK2925S N-Channel Silicon MOSFET
2SK2992 N-Channel MOSFET
2SK2033 N-Channel MOSFET
2SK2059S Silicon N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

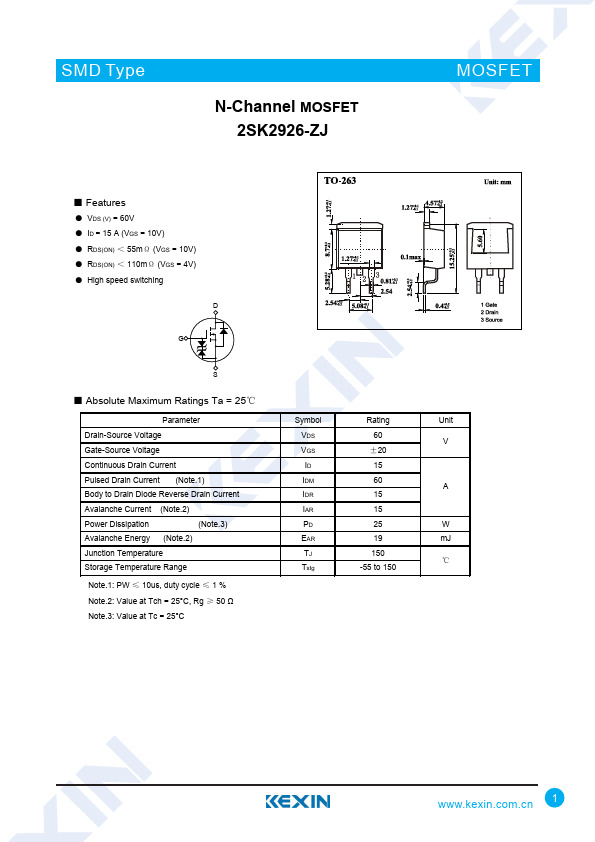

SMD Type N-Channel MOSFET 2SK2926-ZJ MOSFET ■ Features ● VDS (V) = 60V ● ID = 15 A (VGS = 10V) ● RDS(ON) ＜ 55mΩ (VGS = 10V) ● RDS(ON) ＜ 110mΩ (VGS = 4V) ● High speed switching D G S ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Body to Drain Diode Reverse Drain Current Avalanche Current (Note.2) Power Dissipation (Note.3) Avalanche Energy (Note.2) Junction Temperature Storage Temperature Range Symbol Rating Unit VDS 60 V VGS ±20 ID 15 IDM 60 A IDR 15 IAR 15 PD 25 W EAR 19 mJ TJ 150 ℃ Tstg -55 to 150 Note.1: PW ≤ 10us, duty cycle ≤ 1 % Note.2: Value at Tch = 25°C, Rg ≥ 50 Ω Note.3: Value at Tc = 25°C www.kexin.com.
