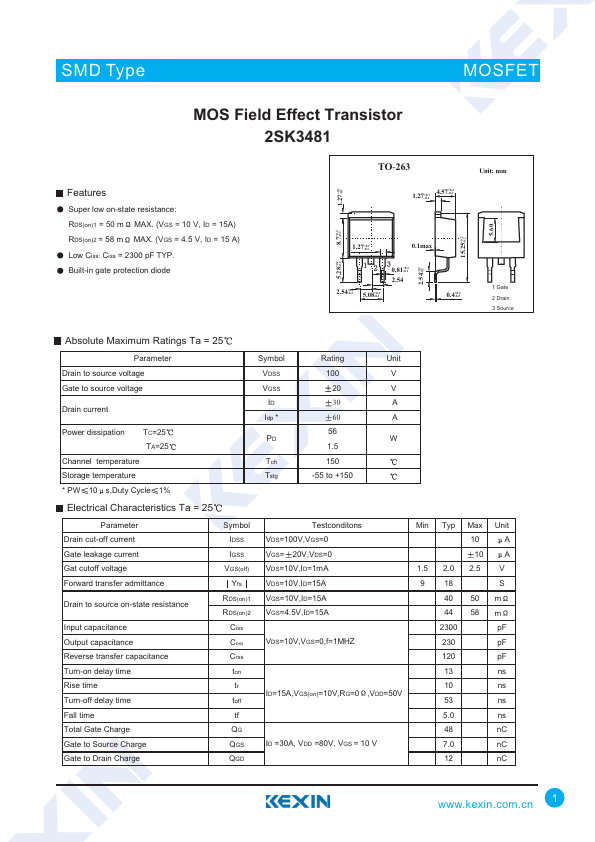

2SK3481
2SK3481 is MOS Field Effect Transistor manufactured by Kexin Semiconductor.
SMD Type
MOSFET
MOS Field Effect Transistor 2SK3481
Features
Super low on-state resistance: RDS(on)1 = 50 m MAX. (VGS = 10 V, ID = 15A) RDS(on)2 = 58 m MAX. (VGS = 4.5 V, ID = 15 A) Low Ciss: Ciss = 2300 pF TYP. Built-in gate protection diode
+0.2 5.28 -0.2
+0.2 8.7 -0.2
TO-263
+0.2
4.57 +0.1
-0.2
1.27-0.1
Unit: mm
+0.1 1.27 -0.1
+0.2 2.54 -0.2 15.25-+00..22 5.60
1.27+0.1 -0.1
0.1max
2.54+0.2 -0.2
5.08+0.1 -0.1
0.81+0.1 -0.1
0.4+0.2 -0.2
1 Gate 2 Drain 3...
