2SK3482 - MOS Field Effect Transistor

Key Features

  • Super low on-state resistance: RDS(on)1 = 33m MAX. (VGS = 10 V, ID = 18A) RDS(on)2 = 39 m MAX. (VGS = 4.5 V, ID = 18A) Low Ciss: Ciss = 3600 pF TYP. +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 3.80 +0.25 2.65 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TC=25 TA=25 Cha.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3482 N-Channel MOSFET Transistor Inchange Semiconductor
2SK3482 SWITCHING N-CHANNEL POWER MOSFET NEC
2SK3482-Z N-Channel MOSFET Transistor Inchange Semiconductor
2SK3480 SWITCHING N-CHANNEL POWER MOSFET NEC
2SK3480 N-Channel MOSFET Transistor Inchange Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3480 MOS Field Effect Transistor
2SK3481 MOS Field Effect Transistor
2SK3483 MOS Field Effect Transistor
2SK3484 MOS Field Effect Transistor
2SK3402 MOS Field Effect Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

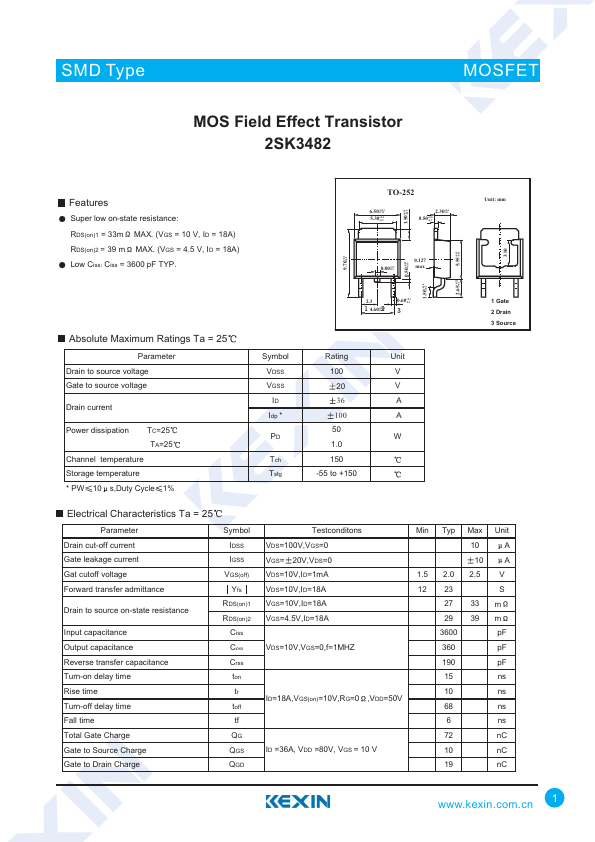

SMD Type MOSFICET MOS Field Effect Transistor 2SK3482 Features Super low on-state resistance: RDS(on)1 = 33m MAX. (VGS = 10 V, ID = 18A) RDS(on)2 = 39 m MAX. (VGS = 4.5 V, ID = 18A) Low Ciss: Ciss = 3600 pF TYP. +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 3.80 +0.25 2.65 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TC=25 TA=25 Channel temperature Storage temperature * PW 10 s,Duty Cycle 1% 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 Symbol Rating Unit VDSS 100 V VGSS 20 V ID 36 A Idp * 100 A 50 PD W 1.
