AO4406 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 11.5 A (VGS = 10V) D.
  • RDS(ON) ＜ 14mΩ (VGS = 10V).
  • RDS(ON) ＜ 16.5mΩ (VGS = 4.5V).
  • RDS(ON) ＜ 26mΩ (VGS = 2.5V) G S +0.04 0.21 -0.02 SOP-8 MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current TA=25℃ TA=70℃ Pulsed Drain Current Avalanche Current Repetitive Avalanche Energy L=0.3mH Power.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4406 N CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR Alpha Industries
AO4406 N-Channel MOSFET Freescale
AO4406 N-Channel MOSFET Alpha & Omega Semiconductors
AO4406A N-Channel MOSFET Alpha & Omega Semiconductors
AO4406A N-Channel MOSFET Freescale

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4406A N-Channel MOSFET
AO4402 N-Channel MOSFET
AO4403-HF P-Channel MOSFET
AO4404 N-Channel MOSFET
AO4404B N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

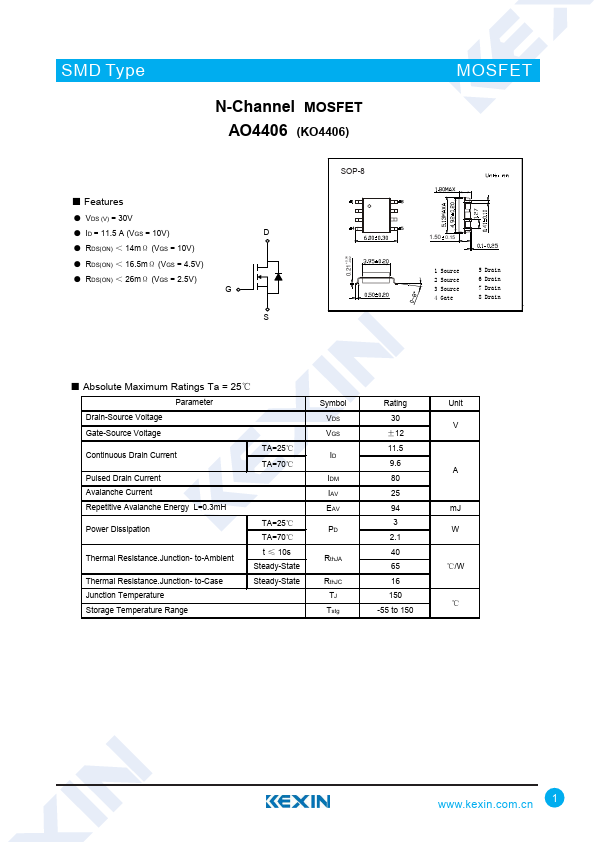

SMD Type N-Channel MOSFET AO4406 (KO4406) ■ Features ● VDS (V) = 30V ● ID = 11.5 A (VGS = 10V) D ● RDS(ON) ＜ 14mΩ (VGS = 10V) ● RDS(ON) ＜ 16.5mΩ (VGS = 4.5V) ● RDS(ON) ＜ 26mΩ (VGS = 2.5V) G S +0.04 0.21 -0.02 SOP-8 MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current TA=25℃ TA=70℃ Pulsed Drain Current Avalanche Current Repetitive Avalanche Energy L=0.3mH Power Dissipation TA=25℃ TA=70℃ Thermal Resistance.Junction- to-Ambient t ≤ 10s Steady-State Thermal Resistance.Junction- to-Case Steady-State Junction Temperature Storage Temperature Range Symbol VDS VGS ID IDM IAV EAV PD RthJA RthJC TJ Tstg Rating 30 ±12 11.5 9.
