AO4406A - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 13 A (VGS = 10V).
  • RDS(ON) ＜ 11.5mΩ (VGS = 10V).

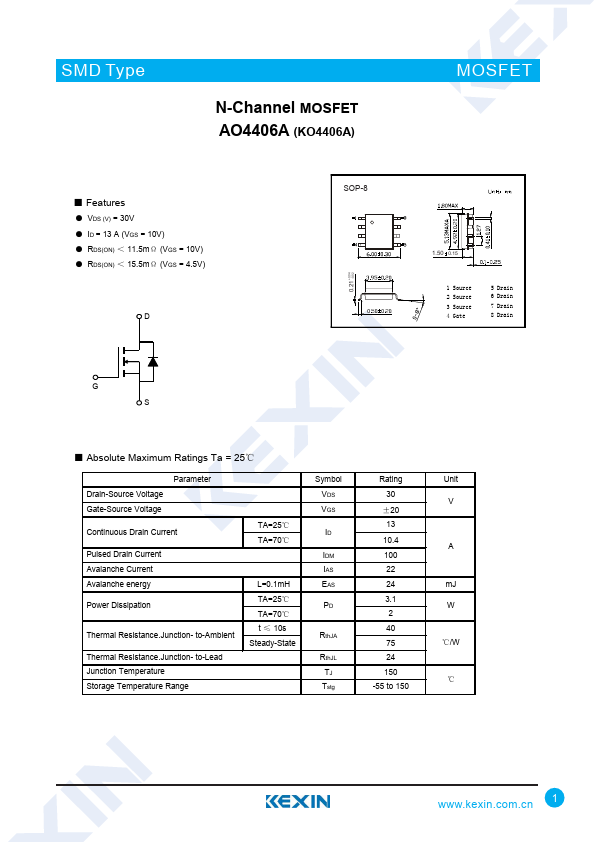

  • RDS(ON) ＜ 15.5mΩ (VGS = 4.5V) D +0.04 0.21 -0.02 SOP-8 MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Avalanche energy Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resistance. Junc.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4406A N-Channel MOSFET Alpha & Omega Semiconductors
AO4406A N-Channel MOSFET Freescale
AO4406AL N-Channel MOSFET Alpha & Omega Semiconductors
AO4406 N CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR Alpha Industries
AO4406 N-Channel MOSFET Freescale

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4406 N-Channel MOSFET
AO4402 N-Channel MOSFET
AO4403-HF P-Channel MOSFET
AO4404 N-Channel MOSFET
AO4404B N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

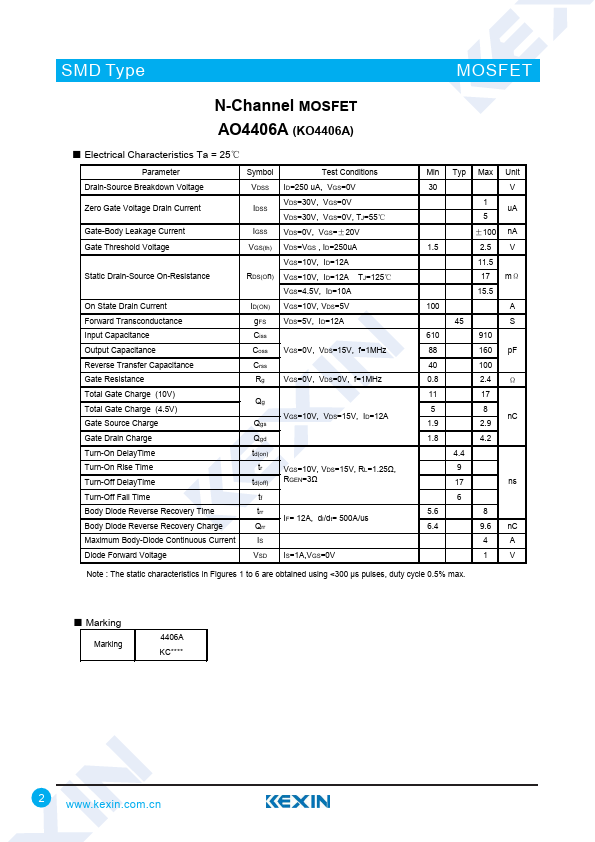

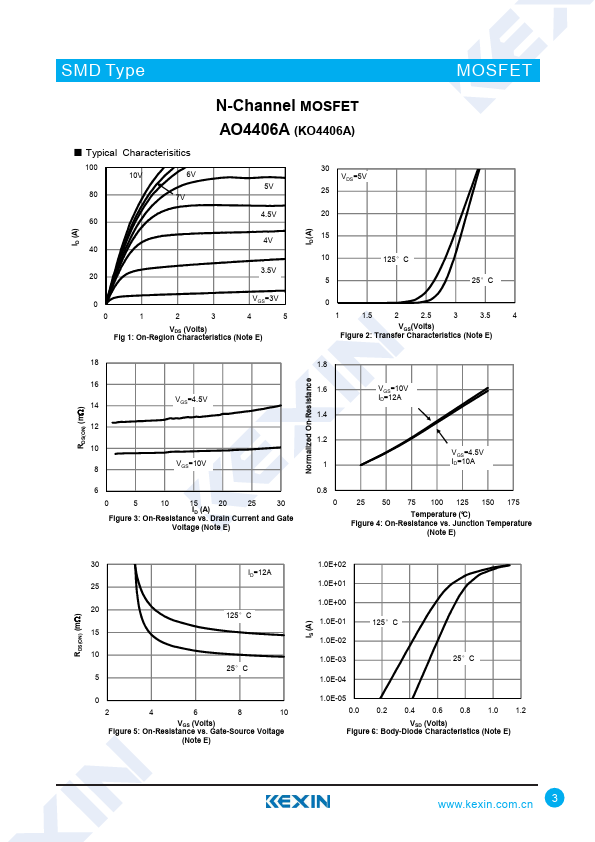

SMD Type N-Channel MOSFET AO4406A (KO4406A) ■ Features ● VDS (V) = 30V ● ID = 13 A (VGS = 10V) ● RDS(ON) ＜ 11.5mΩ (VGS = 10V) ● RDS(ON) ＜ 15.5mΩ (VGS = 4.5V) D +0.04 0.21 -0.02 SOP-8 MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Avalanche energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ L=0.1mH TA=25℃ TA=70℃ t ≤ 10s Steady-State Symbol VDS VGS ID IDM IAS EAS PD RthJA RthJL TJ Tstg Rating 30 ±20 13 10.4 100 22 24 3.1 2 40 75 24 150 -55 to 150 Unit V A mJ W ℃/W ℃ www.
