AO4407 - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-30V.
  • ID =-12 A (VGS =-20V).
  • RDS(ON) ＜ 13mΩ (VGS =-20V).
  • RDS(ON) ＜ 14mΩ (VGS =-10V).
  • RDS(ON) ＜ 30mΩ (VGS =-5V) SOP-8 D +0.04 0.21 -0.02 G S MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Avalanche Current Power Dissipation Avalanche energy TA=25°C TA=70°C TA=25°C TA=70°C L=0.3m.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4407 P-Channel MOSFET Alpha & Omega Semiconductors
AO4407 P-Channel MOSFET Freescale
AO4407 P-Channel MOSFET VBsemi
AO4407A 30V P-Channel MOSFET Alpha & Omega Semiconductors
AO4407A P-Channel MOSFET Freescale

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4407A P-Channel MOSFET
AO4402 N-Channel MOSFET
AO4403 P-Channel MOSFET
AO4403-HF P-Channel MOSFET
AO4404 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

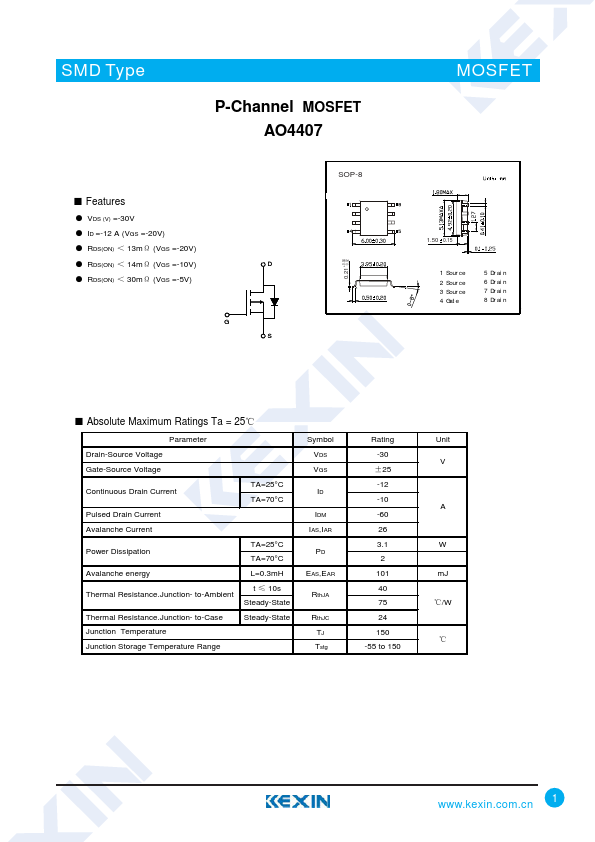

SMD Type P-Channel MOSFET AO4407 ■ Features ● VDS (V) =-30V ● ID =-12 A (VGS =-20V) ● RDS(ON) ＜ 13mΩ (VGS =-20V) ● RDS(ON) ＜ 14mΩ (VGS =-10V) ● RDS(ON) ＜ 30mΩ (VGS =-5V) SOP-8 D +0.04 0.21 -0.02 G S MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Avalanche Current Power Dissipation Avalanche energy TA=25°C TA=70°C TA=25°C TA=70°C L=0.3mH Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Case Junction Temperature Junction Storage Temperature Range t ≤ 10s Steady-State Steady-State Symbol VDS VGS ID IDM IAS,IAR PD EAS,EAR RthJA RthJC TJ Tstg Rating -30 ±25 -12 -10 -60 26 3.
